Weg .1218OS1B48-S 3/25HP 1740RPM 48 ODP 1PH Motor .1218OS1BB48

Product Description

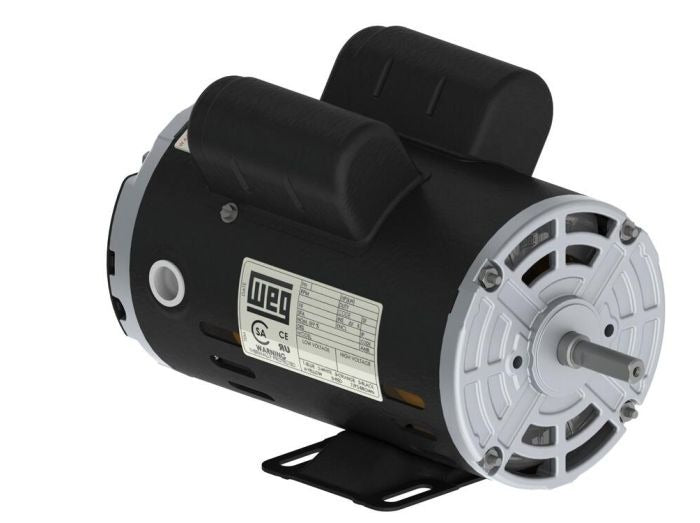

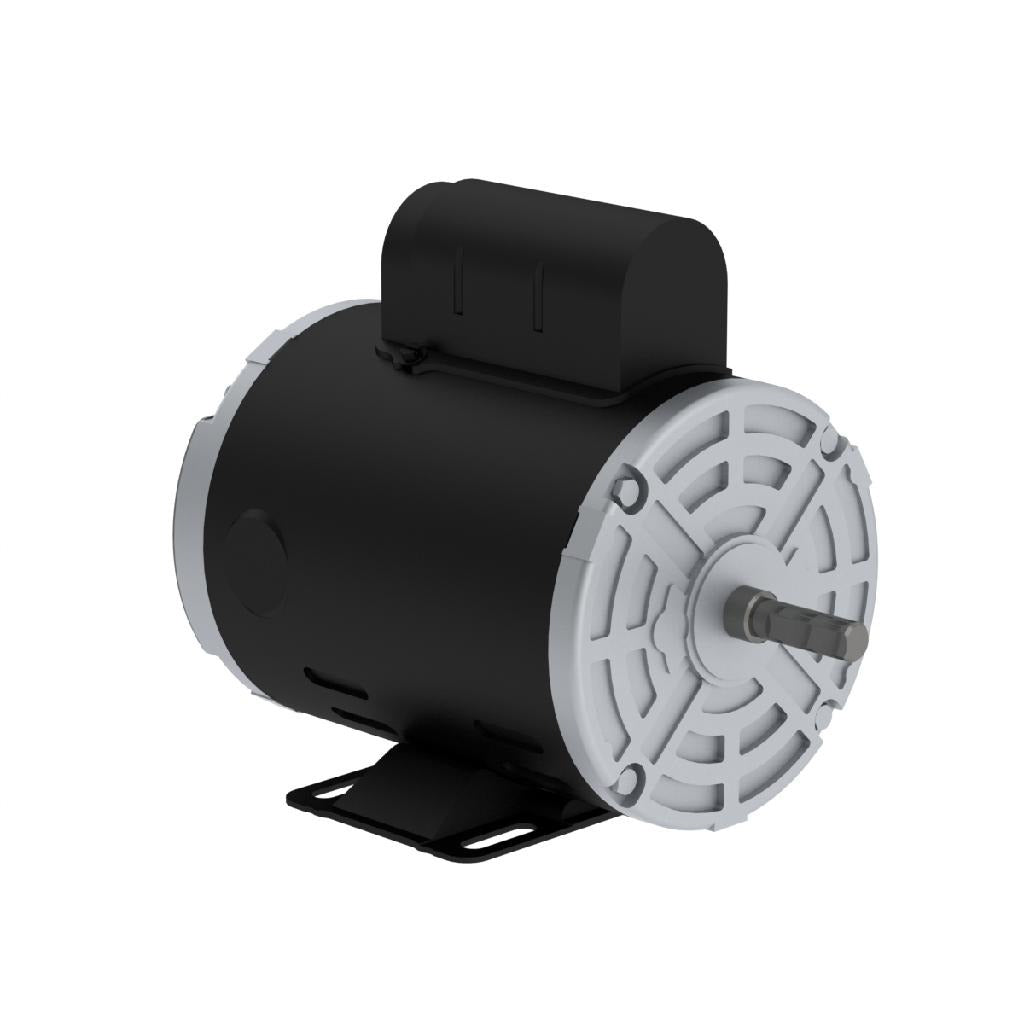

Weg .1218OS1B48-S is a 0.12 HP (3/25) single-phase open drip proof (ODP) rolled-steel motor rated for 115/208-230 V, 60 Hz and 1740 RPM (0.09 kW). The base-mounted NEMA 48 motor provides high starting torque for heavy-starting loads and is intended for general-purpose driving of equipment. It includes Class F insulation, ball bearings, V-ring seals and NPT-threaded terminal box holes for electrical connections.

• 0.12 HP (3/25) single-phase motor, 1740 RPM, 0.09 kW, 115/208-230 V, 60 Hz
• Open Drip Proof (ODP) enclosure, NEMA 48 frame, base mount with NPT-threaded terminal box holes
• Class F insulation, ball bearings, V-ring seals; designed for high starting torque and good thermal performance

Product Highlights

General-purpose 0.12 HP single-phase ODP motor, NEMA 48 base mount, 1740 RPM, 115/208-230 V

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .1218OS1B48-S
• Country of Origin: Mexico
