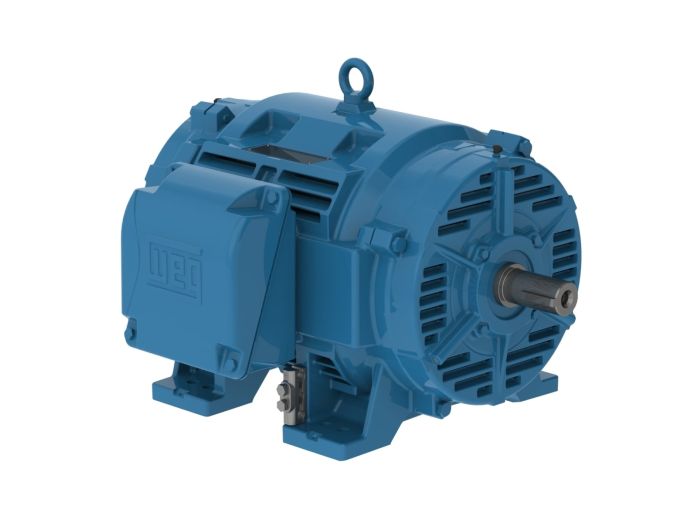

Weg 10018OT3E404T-W40 3-Phase General Purpose Motor 100 HP 404T Frame

Product Description

The WEG 10018OT3E404T-W40 is a three-phase general purpose motor with a power output of 100 HP and a 404T frame. Operating at 230/460V AC voltage and a nameplate RPM of 1,780, this motor is designed for continuous duty. It features an open dripproof enclosure and a rigid base for mounting.

• Three Phase, 100 HP motor with Nameplate RPM 1,780
• Operates at Voltage 230/460V AC with Full Load Amps 230.0/115.0
• Features a 404T Frame, Open Dripproof enclosure, and Rigid Base mounting

Product Highlights

This motor is ideal for applications requiring a reliable and efficient power source. Suitable for use in horizontal mounting positions.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 10018OT3E404T-W40
• Country of Origin: Multiple

Technical Specifications

• HP [Specifications]: 100
• Hz [Specifications]: 60
• Duty [Specifications]: Continuous
• Item [Specifications]: General Purpose Motor
• Frame [Specifications]: 404T
• Phase [Specifications]: Three
• Voltage [Specifications]: 230/460V AC
• CC Number [Specifications]: CC029A
• Footnotes [Specifications]: 3,17
• HP @ 50Hz [Specifications]: 75
• RPM Group [Specifications]: 1701-1800
• RPM Range [Specifications]: 1,701-1,800
• Standards [Specifications]: CE, CSA, UL
• Duty Cycle [Specifications]: Continuous
• Ins. Class [Specifications]: F
• RPM @ 50Hz [Specifications]: 1,485
• Shaft Dia. [Specifications]: 2 7/8 in
• NEMA Design [Specifications]: B
• Motor Design [Specifications]: 3-Phase
• Shaft Length [Specifications]: 7 1/4 in
• Nameplate RPM [Specifications]: 1,780
• No. of Speeds [Specifications]: 1
• Usable @ 208V [Specifications]: Yes
• Frame Material [Specifications]: Cast Iron
• Full Load Amps [Specifications]: 230.0/115.0
• Motor Bearings [Specifications]: Ball
• Overall Length [Specifications]: 34 1/8 in
• Voltage @ 50Hz [Specifications]: 380V AC, 400V AC, 415V AC
• Length Less Shaft [Specifications]: 26 7/8 in
• Motor Application [Specifications]: General Application
• Max. Ambient Temp. [Specifications]: 40 Degrees C
• Motor Shaft Design [Specifications]: Keyed
• Nominal Efficiency [Specifications]: 95.4 %
• Motor Mounting Type [Specifications]: Rigid Base
• Motor Frame Material [Specifications]: Cast Iron
• Motor Service Factor [Specifications]: 1.15
• Motor Shaft Rotation [Specifications]: CW/CCW
• Full Load Amps @ 50Hz [Specifications]: 103.0, 96.2, 97.5
• Service Factor @ 50Hz [Specifications]: 1
• Voltage Compatibility [Specifications]: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
• Motor Efficiency Group [Specifications]: NEMA Premium Efficient
• Motor Enclosure Design [Specifications]: Open Dripproof
• Motor Mounting Position [Specifications]: Horizontal
• Motor Thermal Protection [Specifications]: None
• Green Environmental Attribute [Specifications]: Product Contributes To Reducing Energy Consumption
• Green Certification or Other Recognition [Specifications]: NEMA Premium Rated
• Brand: WEG
• Application: General Purpose
• Output HP: 100
• Output KW: 75
• Output RPM: 1780
• Frame Size NEMA: 404/5T
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP23
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 240 VAC, 480 VAC
• Number of Poles: 4
• Frequency: 60 Hz
• Mounting: Foot Mount
• Current Rating: 115 A
• Service Factor: 1.25
• Inverter Duty: Yes
• Motor Type: Foot Mount
• Composition: Cast Iron
• Bearing Type: Ball
• Shaft Diameter: 2.88 "
• Overload Protection: None
• Length: 34.1 "
• Approvals: cCSAus, cULus
