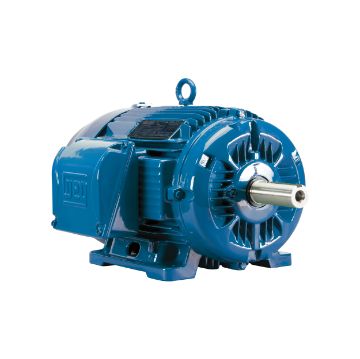

WEG 10018ET3E405T-W22 WEG Continuous-Duty AC Motor 100 hp

Product Description

The WEG Continuous-Duty AC Motor, MPN 10018ET3E405T-W22, is designed for general purpose applications. This motor delivers reliable performance in industrial settings. It features a robust cast iron construction, which ensures durability and longevity.

• Powerful 100 hp output
• Operates on multiple voltage ratings: 208/230/460 VAC
• Footed mount and flexible installation options

Product Highlights

This motor is ideal for continuous duty industrial applications. With a standard NEMA MG-1 rating, it performs efficiently in various setups.

Product Information

Standard Information

• Brand: WEG
• Type: Continuous-Duty

Technical Specifications

• Frame: 404/5T
• Phase: 3
• Horsepower: 100 hp
• Speed: 1775 rpm
• Voltage Rating: 208/230/460 VAC
• Torque Rating: 292 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.25
• Dimensions: 39.73 in L
• Insulation Class: Class F
• Operating Temperature: -20 to 40 deg C
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
