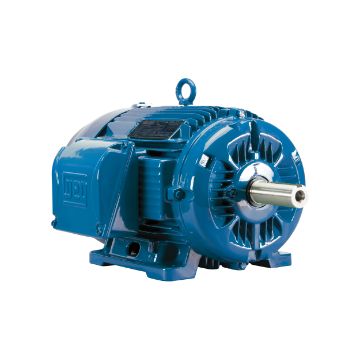

WEG WEG 06036ET3E364TS-W22 Continuous-Duty AC Motor 60 hp 364/5TS
WEG WEG 06036ET3E364TS-W22 Continuous-Duty AC Motor 60 hp 364/5TS
WEG WEG 06036ET3E364TS-W22 Continuous-Duty AC Motor 60 hp 364/5TS
WEG WEG 06036ET3E364TS-W22 Continuous-Duty AC Motor 60 hp 364/5TS

WEG 06036ET3E364TS-W22 Continuous-Duty AC Motor 60 hp 364/5TS

Brand: WEG
SKU: 06036ET3E364TS-W22
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
LTL Delivery

This product weighs 500 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The WEG 06036ET3E364TS-W22 is a Continuous-Duty AC motor designed for various industrial applications. This 60 hp motor operates at 208/230/460 VAC and provides reliable performance at 3560 RPM. It features a totally enclosed fan-cooled enclosure, making it suitable for use in demanding environments.

  • Frame size: 364/5TS
  • Voltage: 208/230/460 VAC
  • Torque rating: 87.3 ft-lb

Product Highlights

This motor is ideal for general purpose applications and ensures durable operation with its cast iron construction. It has a service factor of 1.25 and operates effectively within a temperature range of -20 to 40 degrees Celsius.

Product Information

Standard Information

  • Brand: WEG
  • Type: Continuous-Duty
Technical Specifications
Frame
364/5TS
Phase
3
Speed
3560 RPM
Material
Cast Iron
Rotation
CW/CCW
Dimensions
32.338 in L
Horsepower
60 hp
Shaft Size
1-7/8 in Dia x 3-3/4 in L
Bearing Type
Ball
Mounting Type
Footed
Torque Rating
87.3 ft-lb
Enclosure Type
Totally Enclosed Fan Cooled
Service Factor
1.25
Voltage Rating
208/230/460 VAC
Amperage Rating
148 to 134/67 A
Application Type
General Purpose AC Motors
Frequency Rating
60 Hz
Insulation Class
Class F
Number of Speeds
1
Temperature Rating
-20 to 40 degrees Celsius
Constant Torque Speed Range
20:1
Variable Torque Speed Range
1000:1
