Weg 04018OT3E324T-W40 40HP 1775RPM 324T ODP 3PH Motor 04018OT3E324T-W40

Product Description

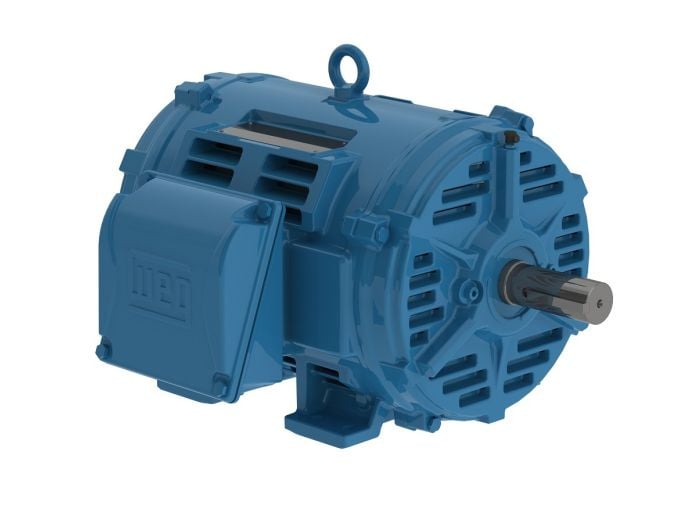

The WEG 04018OT3E324T-W40 40HP Three Phase General Purpose Cast Iron Motor is designed for environments where dirt and moisture are minimal. The ODP cast iron frame provides maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. This motor meets or exceeds the efficiency levels determined by International Standards.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1
• Constant Torque: 3:1

Product Highlights

This WEG motor is ideal for applications such as compressors, pumps, and chillers. It features a 324T frame, and operates at 230/460//380 voltage.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 04018OT3E324T-W40
• Country of Origin: Varies (subject to change)

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 40
• Output KW: 30
• Output RPM: 1775
• Frame Size NEMA: 324T
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP23
• Voltage: 230/460//380
• Manufacturer Part Number: 04018OT3E324T-W40
• Motor Application: General Purpose
• Phase: Three
• Motor Design: Three-Phase
• Nameplate RPM: 1775 rpm
• No. of Speeds: 1
• Full Load Amps: 95.2/47.6 A
• Usable @ 208V: Yes
• Hz: 60 Hz
• Motor Service Factor: 1.15
• Max. Ambient Temp.: 40 °C
• Motor Thermal Protection: None
• Duty Cycle: Continuous
• Ins. Class: F
• NEMA Design: B
• Motor Enclosure Design: Open Drip Proof
• Motor Shaft Rotation: CW/CCW
• Motor Mounting Type: Rigid Base
• Motor Mounting Position: Horizontal
• Inverter Rated: Yes
• Motor Shaft Design: Keyed
• Motor Frame Material: Cast Iron
• Shaft Dia.: 2-1/8 in
• Shaft Length: 5-1/4 in
• Motor Bearings: Ball
• Length Less Shaft: 20-9/16 in
• Overall Length: 25-13/16 in
• Nominal Efficiency: 94.1 %
• Standards: CE; CSA; UL
• Full Load Amps @ 50Hz: 41.7; 42.2; 43.3 A
• HP @ 50Hz: 30 hp
• RPM Range: 1,701-1,800
• UNSPSC: 26101612
• Kilowatts: 29.8 kW
• Number of Poles: 4
• Frequency: 50 Hz, 60 Hz
• Nominal Voltage: 240 VAC, 480 VAC
• Mounting: Foot Mount
• Current Rating: 47.6 A
• Service Factor: 1.25
• Motor Type: Foot Mount
• Composition: Cast Iron
• Bearing Type: Double Shielded
• Shaft Diameter: 2.13 "
• Overload Protection: None
• Length: 25.81 "
• Approvals: cCSAus, cULus
