Weg 04018ET3E324T-W22G 40 HP 1800 RPM TEFC 324/6T FRAME 230/460 Volts

Product Description

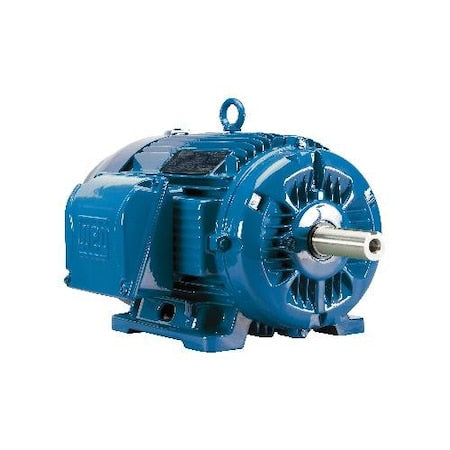

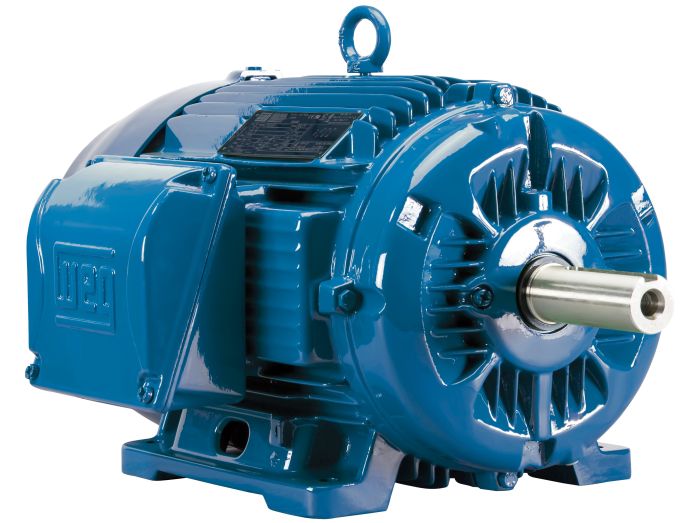

The WEG 04018ET3E324T-W22G is a 40 HP three-phase motor with a 324/6T frame, designed for environments where dirt and moisture are minimal. This W22 motor is severe duty rated with rugged features, including IP55 ingress protection and IEEE841 vibration levels. It is inverter rated to 20:1 at constant torque and has Aegis Ring bearing protection installed.

• Severe duty rated with rugged features
• Features IP55 ingress protection and IEEE841 vibration levels
• Inverter rated to 20:1 at constant torque

Product Highlights

This WEG motor is ideal for applications such as HVAC, compressors, pumps, and chillers, meeting or exceeding international efficiency standards.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 04018ET3E324T-W22G
• Country of Origin: Brazil

Technical Specifications

• Country of Origin (subject to change): Brazil
• Model: 04018ET3E324T-W22G
• Phase: Three-Phase
• Power: 40 HP
• Base RPM: 1800
• Frame: 324T
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 230/460V
• Construction: Cast Iron
• Output KW: 30
• Output RPM: 1775//1460
• Frame Size NEMA: 324/6T
• Mount NEMA: With Base
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Brand: WEG
• Application: AEGIS SGR
• Manufacturer Part Number: 04018ET3E324T-W22G
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Horsepower: 40 hp
• Speed: 1,800 RPM
• Frequency: 60 Hz
• NEMA Frame: 324/6T
• AC Voltage: 230 VAC
• Nominal Voltage: 240 VAC
• Mounting: Foot Mount
• Current Rating: 47.1 A
• Service Factor: 1.25
• Composition: Cast Iron
