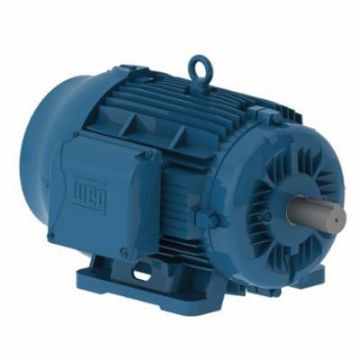

WEG 04018ET3E324T-W22 AC Motor 40 hp 324/6T

Product Description

The WEG AC Motor, model 04018ET3E324T-W22, is designed for various industrial applications including pumps, compressors, and fans. It features a totally enclosed fan cooled enclosure and operates at 40 horsepower. The voltage rating is suitable for 208/230/460 VAC and functions at sixty hertz with a speed of one thousand eight hundred rpm.

• 40 hp with a 324/6T frame size
• Operates at 208/230/460 VAC
• Suitable for a wide range of industrial applications

Product Highlights

This motor is built with a cast iron frame and has a footed mount. It offers a service factor of 1.25 and features a ball bearing type for durability.

Product Information

Standard Information

• Brand: WEG
• Manufacturer: WEG ELECTRIC CORP

Technical Specifications

• Frame: 324/6T
• Phase: 3
• Speed: 1800 rpm
• Horsepower: 40 hp
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 104 to 94.2/47.1 A
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Material: Cast Iron
• Service Factor: 1.25
• Torque Rating: 117 ft-lb
• Mounting Type: Footed
• Application Type: Compressor Motors, Fan & Blower Motors, General Purpose AC Motors
• Rotation: CW/CCW
• Shaft Size: 2-1/8 in Dia x 5-1/4 in L
