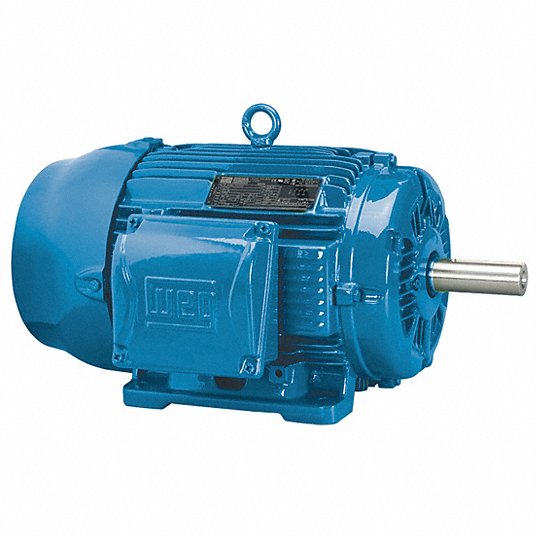

WEG 03036ET3E286TS-W22 MOTOR 30HP 2P 284/6TS WFF2

Product Description

The WEG AC Motor, model number 03036ET3E286TS-W22, is designed for continuous-duty general purpose applications. This motor offers thirty horsepower and operates at voltage ratings of two hundred eight, two hundred thirty, and four hundred sixty VAC. It is engineered to operate efficiently within a frequency rating of sixty Hertz and features a speed of three thousand five hundred thirty-five revolutions per minute.

• Durable cast iron construction for increased longevity.
• Equipped with regreasable ball bearings for maintenance ease.
• IP55 rating for protection against dust and water ingress.

Product Highlights

This motor is suitable for various applications and is built to withstand tough conditions providing reliable performance.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• UPC: 7891327086807

Technical Specifications

• Amperage Rating: 74.7 to 67.6/33.8 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 26.557 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 284/6TS
• Frequency Rating: 60 Hz
• Horsepower: 30 hp
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed
• Number of Speeds: 1
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 1-5/8 in Dia x 3-1/4 in L
