Weg 03018OT3E286T-W40 W40 NEMA Premium Efficiency 30 HP 4P 284/6T replacement mpn

Product Description

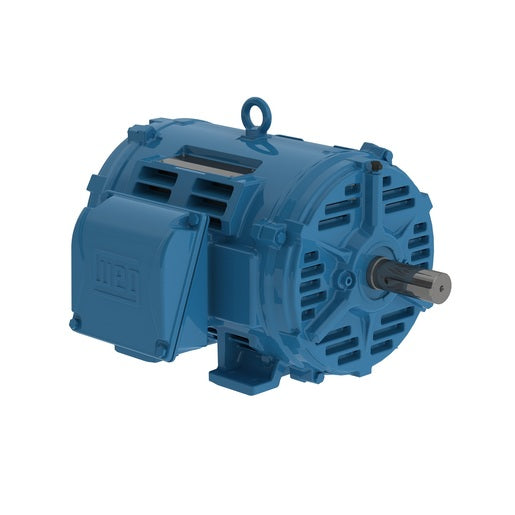

The WEG 03018OT3E286T-W40 W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The cast iron frame provides maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. It is designed for applications such as compressors and pumps.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1

Product Highlights

This WEG motor is ideal for environments where dirt and moisture are minimal. The cast iron frame provides maximum ventilation.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 03018OT3E286T-W40

Technical Specifications

• NEMA MG-1: Standard
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 4
• Degree of Protection: IP23
• Synchronous speed: 1800 rpm
• Output rating: 30 HP
• Mounting: F-1
• Flange: Without
• Terminal box : Left position
• Enclosure: IC01 - ODP
• Application: General Purpose
• Output KW: 22
• Output RPM: 1770
• Frame Size NEMA: 284/6T
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP23
• Motor Phase: 3 ph
• Motor Horsepower: 30 hp
• Motor Supply Voltage: 230/460 V
• Base RPM: 1800 rpm
• Assembly Box Mounting: F1
• Duty Condition Type: Continuous Duty
• Mounting Type: Foot
• Full Load Current: 34.90 A
• Full Load Efficiency: 94.1 %
• kW: 22.40 kW
• Amps @ Voltage: 34.9 @ 460
• Number Of Speeds: 1
• Volts @ Frequency: 230/460 @ 60 Hz
• Shaft Rotation: CW/CCW
• Overall Length C Dimension: 24.658 in
• Opposite Drive End Bearing Type: Ball Bearing
• Type Of Bearing: Ball Bearing
• NEMA Design Class: B
• Service Factor: 1.15
• Frame Material: Cast Iron
• Insulation Class: F
• IP Rating: 21
• Standards Met: CE, CSA, UL
• RoHs Compliance: Yes
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
