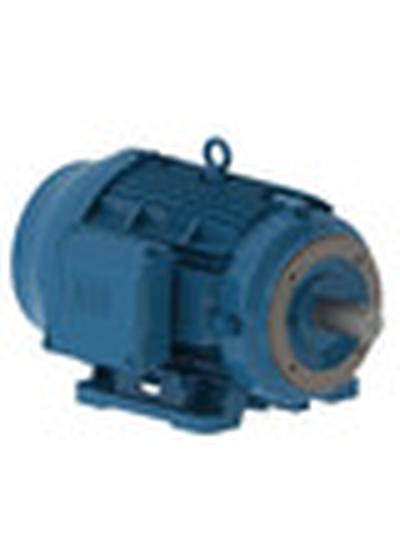

WEG 03018ET3E286TC-W22 MOTOR 30HP 4P 284/6TC WFF2

Product Description

WEG AC Motor, MPN 03018ET3E286TC-W22, operates at thirty horsepower for various applications. It is built for continuous-duty with general purpose AC motors. This motor supports three-phase operation at voltages of two hundred eight, two hundred thirty, and four hundred sixty VAC. The unit delivers a maximum speed of one thousand seven hundred sixty-five rpm with a service factor of 1.25.

• Amperage rating of seventy-seven point six to seventy point two or thirty-five point one A
• Totally enclosed fan cooled enclosure to prevent dust and moisture ingress
• Regreasable bearings for easier maintenance

Product Highlights

This motor is suitable for a range of general purpose applications.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• UPC: 7891327196544

Technical Specifications

• Horsepower: 30 hp
• Frame: 284/6TC
• Enclosure Type: Totally Enclosed Fan Cooled
• Dimensions: 27.929 in L
• Shaft Size: 1-7/8 in Dia x 4-5/8 in L
• Rotation: CW/CCW
• Number of Speeds: 1
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: C-Face Footed
• Constant Torque Speed Range: 20:1
• Amperage Rating: 77.6 to 70.2/35.1 A
• Application Type: General Purpose AC Motors
• Frequency Rating: 60 Hz
• Bearing Type: Ball
• Service Factor: 1.25
