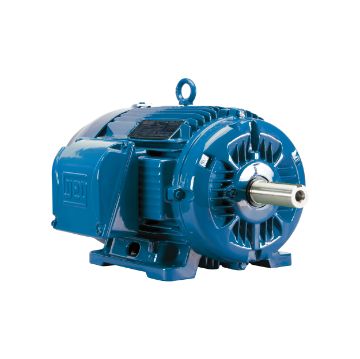

WEG 03018ET3E286T-W22 Continuous-Duty AC Motor 30 hp - 284/6T

Product Description

The WEG 03018ET3E286T-W22 is a continuous-duty AC motor designed for general-purpose applications. This motor delivers thirty horsepower and operates at voltages of 208, 230, and 460 VAC. It features a totally enclosed fan-cooled enclosure, ensuring reliable performance in various industrial environments.

• Ball bearing design for smooth operation.
• Footed mounting for easy installation.
• IP55 rated for protection against dust and water.

Product Highlights

Ideal for applications requiring consistent torque and speed, this motor operates at a speed of one thousand seven hundred sixty-five RPM and has a service factor of 1.25.

Product Information

Standard Information

• Brand: WEG
• Type: Continuous-Duty

Technical Specifications

• Frame: 284/6T
• Phase: 3
• Speed: 1765 RPM
• Horsepower: 30
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 77.6 to 70.2/35.1 A
• Torque Rating: 88.1 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Insulation Class: Class F
• Dimensions: 27.929 in L
• Shaft Size: 1-7/8 in Dia x 4-5/8 in L
• Rotation: CW/CCW
• Service Factor: 1.25
• Temperature Rating: -20 to 40 deg C
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
