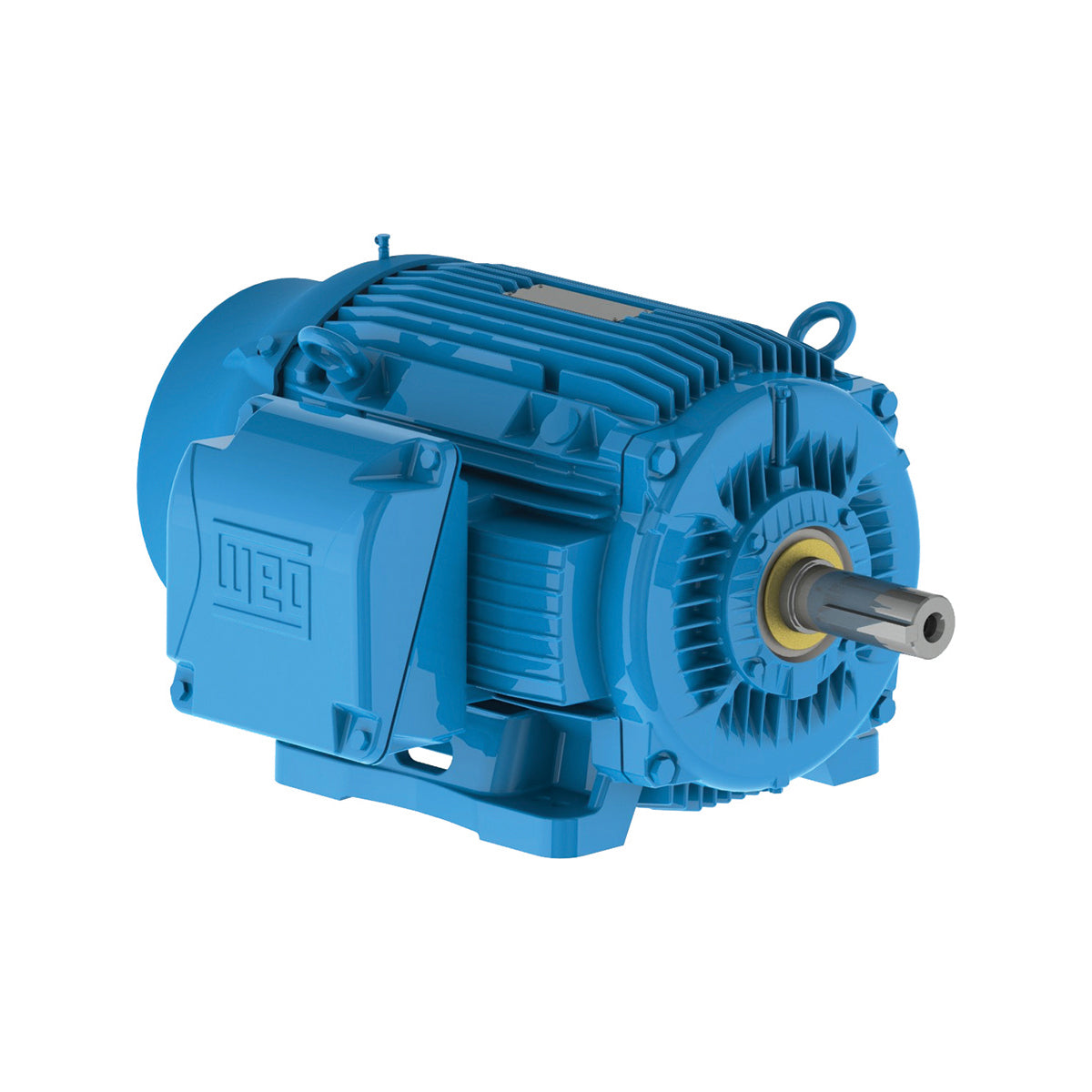

WEG 02536ST3QIE284TS-W22 MOTOR 25HP 2P 284/6TS WFF2

Product Description

The WEG 02536ST3QIE284TS-W22 is a robust AC motor with a power rating of 25 horsepower. Designed for continuous-duty applications, this motor is suited for general-purpose use in various industrial settings. Operating at 460 VAC and 60 Hz, it delivers a maximum speed of 3535 RPM.

• Three-phase operation with a 1.25 service factor
• Totally enclosed fan-cooled design for enhanced durability
• Ball bearings with regreasable features

Product Highlights

This motor features a cast iron construction and maintains an insulation class of F, ensuring reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• UPC: 7899146770051

Technical Specifications

• Amperage Rating: 28.5 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 26.557 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 284/6TS
• Frequency Rating: 60 Hz
• Horsepower: 25 hp
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed
• Number of Speeds: 1
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 1-5/8 in Dia x 3-1/4 in L
