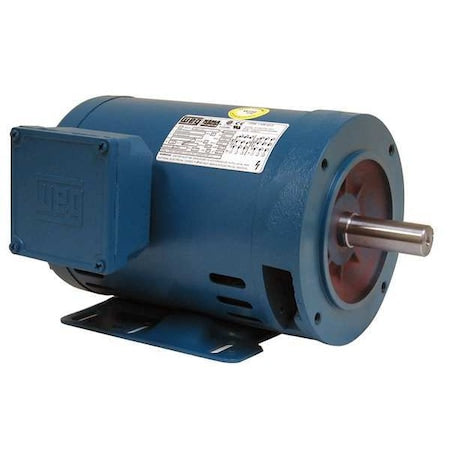

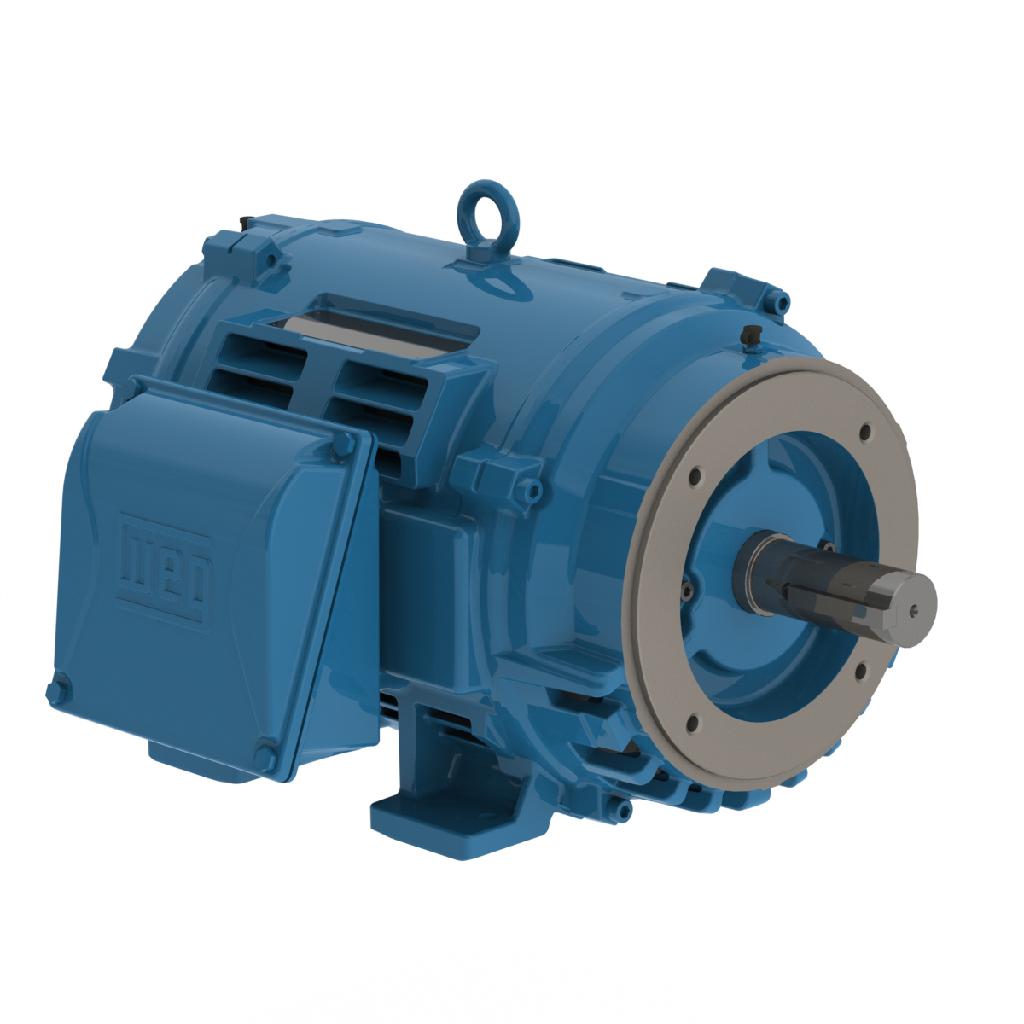

Weg 02518OT3E284TC-W40 3-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM REPLACES 02518OT3E284TC

Product Description

The WEG 02518OT3E284TC-W40 is a 3-Phase General Purpose Motor with a motor design of 3-Phase and 25 HP. Operating at 230/460V AC voltage and 1,770 nameplate RPM, it features a 284TC frame. Designed for continuous duty, this motor is suitable for environments where dirt and moisture are minimal.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Frame, end-shields and terminal box are FC 200 cast iron

Product Highlights

This motor is widely used in applications such as compressors, pumps, and chillers. It meets or exceeds the efficiency levels determined by International Standards.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 02518OT3E284TC-W40
• Country of Origin: Multiple

Technical Specifications

• HP: 25
• Hz: 60
• Duty: Continuous
• Item: General Purpose Motor
• Frame: 284TC
• Phase: Three
• Voltage: 230/460V AC
• RPM Group: 1701-1800
• RPM Range: 1,701-1,800
• Standards: CE, CSA, UL
• Ins. Class: F
• Shaft Dia.: 1 7/8 in
• NEMA Design: None
• Motor Design: 3-Phase
• Shaft Length: 4 5/8 in
• Nameplate RPM: 1,770
• No. of Speeds: 1
• Usable @ 208V: Yes
• Frame Material: Cast Iron
• Full Load Amps: 59.0/29.5
• Motor Bearings: Ball
• Overall Length: 23 3/16 in
• Number of Wires: 12
• Length Less Shaft: 18 9/16 in
• Motor Application: General Application
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: Keyed
• Nominal Efficiency: 93.6 %
• Motor Mounting Type: Rigid Base
• Motor Frame Material: Cast Iron
• Motor Service Factor: 1.25
• Motor Shaft Rotation: CW/CCW
• Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
• Motor Enclosure Design: Open Dripproof
• Motor Thermal Protection: None
• Green Certification or Other Recognition: NEMA Premium(R) Rated
• Output KW: 18.5
• Output RPM: 1770
• Frame Size NEMA: 284TC
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP23
• Frequency: 60Hz
• Poles: 4
• Cooling: IC01
• Manufacturer: WEG
• Manufacturer Part Number: 02518OT3E284TC-W40
• Replaces: 02518OT3E284TC
• Mounting Design: C-Face With Feet
• Frame Remarks: FOOTED
• mounting: C-Face w/ Rigid Base
• Volts: 208-230/460
• Primary brand: WEG
• Order code / Manufacturer SKU: 02518OT3E284TC-W40
• Manufacturer description: ODP - NEMA PREMIUM EFFICIENCY - MOTOR 25HP 4P 284TC WFA2
• Location of origin: Brazil
