Weg 02518OT3E284T-W40 W40 NEMA Premium Efficiency 25 HP 4P 284T

Product Description

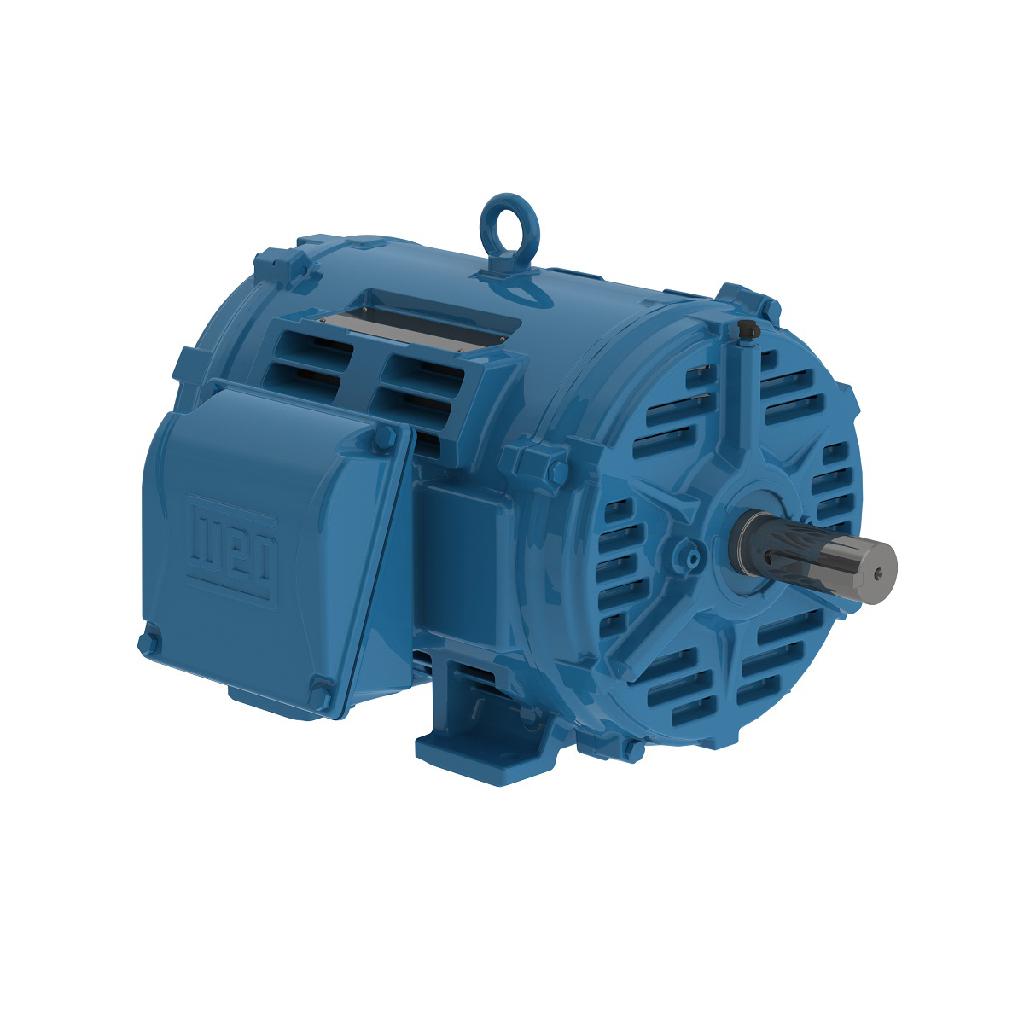

The WEG 02518OT3E284T-W40 is a 25 HP three-phase general-purpose cast iron motor designed for environments where dirt and moisture are minimal. The ODP cast iron frame provides maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness, and durability. It meets efficiency levels determined by International Standards.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1

Product Highlights

This motor is ideal for applications such as compressors, pumps, and chillers. It features a cast iron frame, easy F2 conversion, and regreasable ball bearings.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 02518OT3E284T-W40
• Country of Origin: Varies (subject to change)

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 4
• Degree of Protection: IP23
• Synchronous speed: 1800 rpm
• Output rating: 25 HP
• Mounting: F-1
• Flange: Without
• Terminal box : Left position
• Enclosure: IC01 - ODP
• Application: General Purpose
• Output KW: 18.5
• Output RPM: 1770
• Frame Size NEMA: 284T
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP23
• HP: 25
• RPM: 1800
• Frame: 284T
• mounting: Rigid Base
• Volts: 208-230/460
• Phase: 3
• Manufacturer: Weg
• Item Condition: Factory New
• Model: 14367175
• Replaces: 02518OT3E284T
• Motor Application: General Purpose
• Motor Design: Three-Phase
• Nameplate RPM: 1,770
• No. of Speeds: 1
• Full Load Amps: 59.0/29.5 A
• Usable @ 208V: Yes
• Usable @ 200V: No
• Hz: 60 Hz
• Motor Service Factor: 1.25
• Max. Ambient Temp.: 40 °C
• Motor Thermal Protection: None
• Duty Cycle: Continuous
• Ins. Class: F
• NEMA Design: B
• Motor Enclosure Design: Open Drip Proof
• Motor Shaft Rotation: CW/CCW
• Motor Mounting Type: Rigid Base
• Motor Mounting Position: Horizontal
• Motor Shaft Design: Keyed
• Motor Frame Material: Cast Iron
• Shaft Dia.: 1-7/8 in
• Shaft Length: 4-5/8 in
• Motor Bearings: Ball
• Length Less Shaft: 18-9/16 in
• Overall Length: 23-3/16 in
• Weight: 350 lb
• Nominal Efficiency: 93.6 %
• CC Number: CC029A
• Standards: CE; CSA; UL
• Manufacturers Warranty Length: 3 yr
• Full Load Amps @ 50Hz: 28.0; 28.7; 29.5 A
• HP @ 50Hz: 20 hp
• RPM Range: 1,701-1,800
• UNSPSC: 26101612
• Manufacturer Part #: 02518OT3E284T-W40
• Mounting Design: Foot Mount
• Shaft Grounding Protection: None
