Product Description

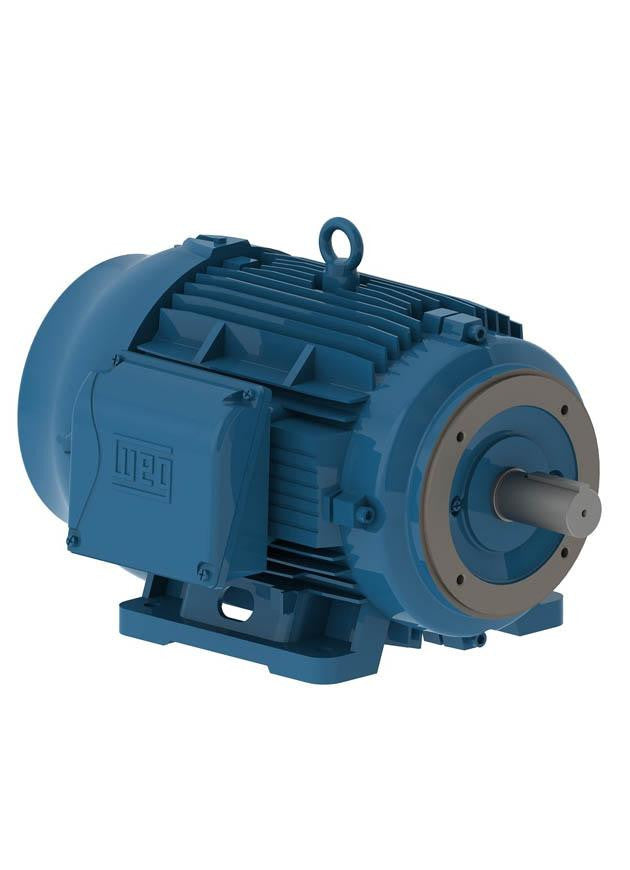

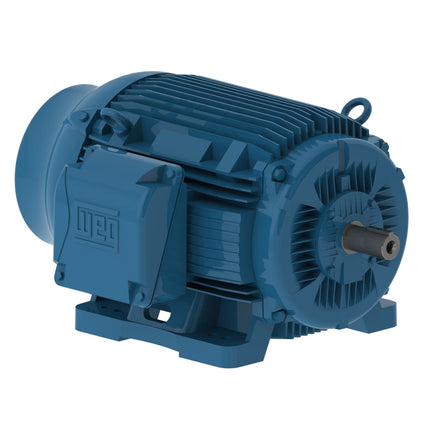

The WEG 02518ET3E284TS-W22 W22 motor features a cast iron frame, flexible mounting, and solid feet. These motors have lower noise levels and operating temperatures, making them suitable for various industrial applications. Severe duty rated with IP55 ingress protection and inverter rated to 20:1 at constant torque. Available in NEMA Premium Efficiency levels.
- Cast iron frame for durability
- IP55 ingress protection against dust and moisture
- Inverter rated to 20:1 at constant torque
Product Highlights
This WEG motor is ideal for industrial applications requiring a robust and efficient motor. It offers reliable performance and extended operational life.
Product Information
Standard Information
-
Brand: WEG
-
Manufacturer Part Number: 02518ET3E284TS-W22
-
Country of Origin: US
Technical Specifications
-
Standard: NEMA MG-1
-
Frequency: 60//50 Hz
-
Voltage: 230/460//380 V
-
Number of poles: 4
-
Degree of Protection: IP55
-
Synchronous speed: 1800 rpm
-
Output rating: 25 HP
-
Mounting: F-1
-
Flange: Without
-
Terminal box : Left position
-
Enclosure: IC411 - TEFC
-
Model: 02518ET3E284TS-W22
-
Phase: Three-Phase
-
Base RPM: 1800
-
Frame: 284/6TS
-
Construction: Cast Iron
-
Application: General Purpose
-
Output KW: 18.5
-
Output RPM: 1765
-
Frame Size NEMA: 284/6T
-
Mount NEMA: With Base
-
Enclosure NEMA: TEFC
-
Enclosure IEC: IP55
-
Horsepower: 25 hp
-
Motor Type: TEFC
-
Series: Severe Duty
-
Rated Voltage: 208-230/460 V
-
Rated Speed: 1765 rpm
-
No Load Current: 10.5-21.0/10.5 A
-
Rated Current: 65.2-59.0/29.5 A
-
Rated Torque: 73.4 ft.lb
-
Frame Material: Cast Iron
-
Efficiency Group: NEMA Premium
-
C Dimension: 26.557
-
Full Load Efficiency: 93.6 %
-
Service Factor: 1.25
-
Motor Application: General Purpose
-
Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
-
Full Load Amps: 29.5
-
Hz: 60 Hz
-
Input Phase: Three Phase
-
RPM: 1800 rpm
-
Mounting Type: Foot Mounted
-
Rated Load (HP): 460/230
-
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
-
MPN: 02518ET3E284T-W22
-
AC Phase: Three Phase
