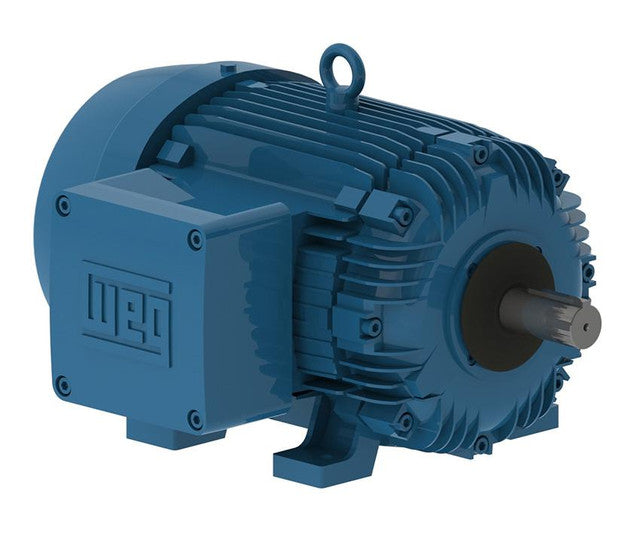

WEG 02036XT3E256T MOTOR 20HP 2P 256T WFX1

Product Description

WEG Electric Corp offers the 02036XT3E256T, a 20 horsepower, two-pole motor designed for continuous-duty applications. This explosion-proof AC motor operates at 208/230/460 volts and is built to last. It features a totally enclosed fan cooled enclosure and a frame size of 256T. The motor runs at a speed of 3530 revolutions per minute with capabilities for both clockwise and counterclockwise rotation.

• 20 horsepower with a service factor of 1.15
• Features a stainless steel nameplate and NPT threaded terminal box
• IP55 rated for dust and water resistance

Product Highlights

This motor excels in durability and performance, making it suitable for various industrial applications. Its cast iron construction ensures strength and longevity.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• UPC: 7909492060154

Technical Specifications

• Horsepower: 20 hp
• Amperage Rating: 50.6 to 46.4/23.2 A
• Frame: 256T
• Enclosure Type: Totally Enclosed Fan Cooled
• Shaft Size: 1-5/8 in Dia x 4 in L
• Speed: 3530 rpm
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.15
• Material: Cast Iron
• Mounting Type: Footed
• Insulation Class: Class F
• Constant Torque Speed Range: 20:1
