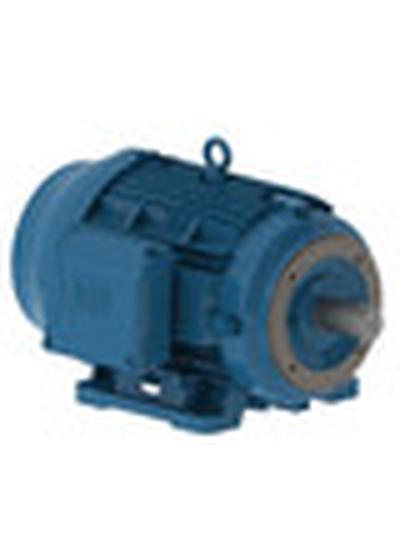

WEG 02036ET3E256TC-W22 MOTOR 20HP 2P 254/6TC WFF2

Product Description

The WEG MOTOR 20HP 2P 254/6TC WFF2 is designed for general purpose applications. This three-phase AC motor operates at twenty horsepower and can work with voltage ratings of two hundred eight, two hundred thirty, or four hundred sixty VAC. It features a continuous-duty design suitable for various tasks.

• Operating Speed: Three thousand five hundred twenty RPM
• Service Factor: 1.25
• Durable cast iron construction

Product Highlights

Built to last, the motor is ideal for a range of industrial uses. It emphasizes efficiency and reliability with a totally enclosed fan-cooled design.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Product SKU: WEG 02036ET3E256TC-W22

Technical Specifications

• Horsepower: 20 hp
• Amperage Rating: 51.3 to 46.4/23.2 A
• Dimensions: 24.945 in L
• Frame: 254/6TC
• Insulation Class: Class F
• Mounting Type: C-Face Footed
• Enclosure Type: Totally Enclosed Fan Cooled
• Number of Speeds: 1
• Rotation: CW/CCW
• Constant Torque Speed Range: 20:1
• Frequency Rating: 60 Hz
• Bearing Type: Ball
• Material: Cast Iron
