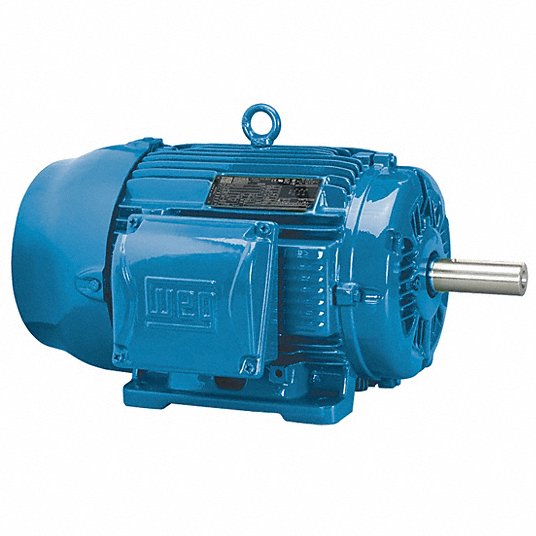

WEG 02036ET3E256T-W22 MOTOR 20HP 2P 254/6T WFF2

Product Description

WEG ELECTRIC CORP offers the 02036ET3E256T-W22, a powerful 20 horsepower motor. It is designed for continuous-duty and is suitable for general purpose applications. This AC motor operates at three phase with a voltage of 208/230/460 VAC and a frequency of sixty Hz.

• Offers a footed mounting option.
• Encased in a totally enclosed fan cooled enclosure.
• Features a durable cast iron construction with IP55 rating for enhanced protection.

Product Highlights

The motor is designed for efficient performance with a speed of 3520 rpm and a service factor of 1.25. It is equipped with regreasable bearings for maintenance ease and has a variable torque speed capability of one thousand to one.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Application Type: General Purpose AC Motors

Technical Specifications

• Horsepower: 20 hp
• Amperage Rating: 51.3 to 46.4/23.2 A
• Frame: 254/6T
• Shaft Size: 1-5/8 inches Dia x 4 inches L
• Enclosure Type: Totally Enclosed Fan Cooled
• Rotation: CW/CCW
• Service Factor: 1.25
• Insulation Class: Class F
• Dimensions: 24.945 inches L
