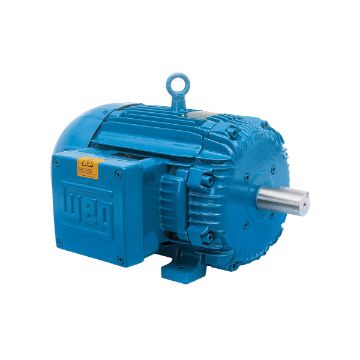

WEG 02018XT3E256T Continuous-Duty AC Motor 20 hp

Product Description

WEG 02018XT3E256T is a continuous-duty AC motor designed for demanding applications. This motor features a totally enclosed fan cooled enclosure and is explosion proof, making it suitable for environments with explosive atmospheres. It operates at a voltage of 208/230/460 VAC and has a horsepower rating of twenty.

• Explosion-proof for use in hazardous areas.
• High efficiency with NEMA Premium standards.
• Versatile mounting options with a footed design.

Product Highlights

The WEG 02018XT3E256T motor is ideal for industrial applications requiring a reliable and efficient power source. It provides enhanced performance with a constant torque speed range of twenty to one and can handle variable torque speed of one thousand to one.

Product Information

Standard Information

• Brand: WEG
• Type: Continuous-Duty

Technical Specifications

• Frame: 256T
• Phase: 3
• Speed: 1770 rpm
• Horsepower: 20 hp
• Voltage Rating: 208/230/460 VAC
• Frequency Rating: 60 Hz
• Amperage Rating: 55.3 to 50/25 A
• Torque Rating: 58.5 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Insulation Class: Class F
• Material: Cast Iron
• Shaft Size: 1-5/8 in Dia x 4 in L
• Service Factor: 1.15
• Rotation: CW/CCW
• Dimensions: 24.923 in L
