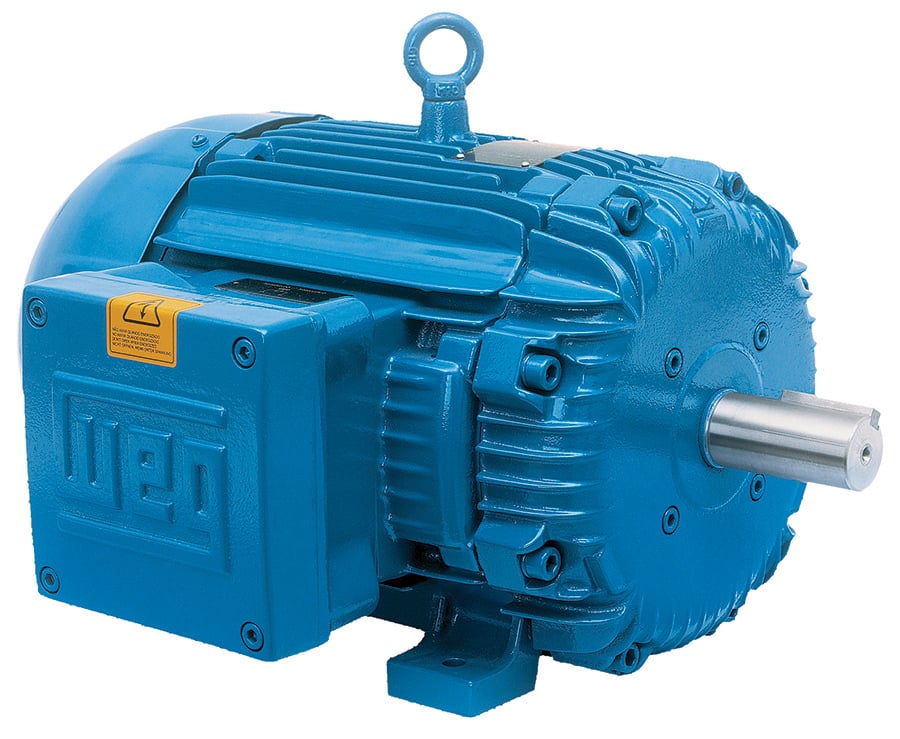

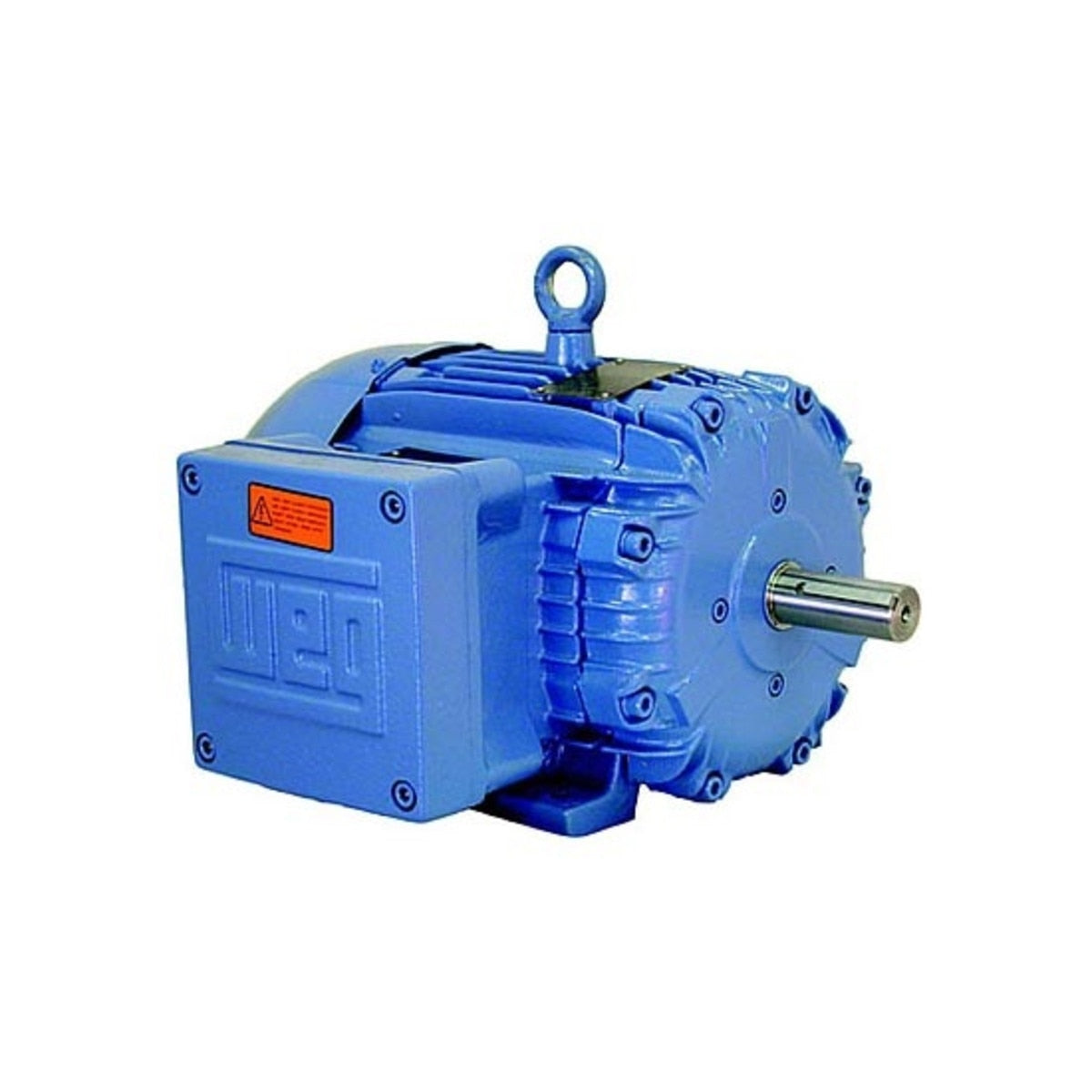

Weg 01536XT3E254T W21 Explosion-proof Motor NEMA Premium Efficiency 15 HP 2P 254T

Product Description

The WEG 01536XT3E254T W21 explosion-proof motor is designed for environments with explosive atmospheres. This NEMA Premium efficiency motor has a robust construction and a flame retention system. It meets Division I/Zone 1 explosive atmosphere requirements and is certified for VFD service. Suitable for applications requiring UL or CSA certification for hazardous locations.

• NEMA MG-1 Standard
• 60//50 Hz Frequency
• 230/460//380 V Voltage

Product Highlights

WEG explosion-proof motors are suitable for applications requiring UL or CSA certification for hazardous locations.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 01536XT3E254T
• Country of Origin: Brazil

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 15 HP
• Mounting: F-1
• Flange: Without
• Terminal box : Left position
• Enclosure: IC411 - TEFC
• Application: Explosion Proof
• Output KW: 11
• Output RPM: 3540//2915
• Frame Size NEMA: 254T
• Mount NEMA: With Base
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• HP: 15
• RPM: 3600
• Frame: 254T
• Frame Remarks: Footed
• Volts: 208/230/460
• Phase: 3
• Manufacturer: WEG
• Classification: Three Phase
• Model: 14406883
• Mounting Design: Foot Mount
• Hz: 60 Hz
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 17.4
• Efficiency Group: NEMA Premium
• C Dimension: 23.175
• Full Load Efficiency: 91 %
• Motor Application: Explosion Proof
• Service Factor: 1.15
• Voltage Rating: 230/460
