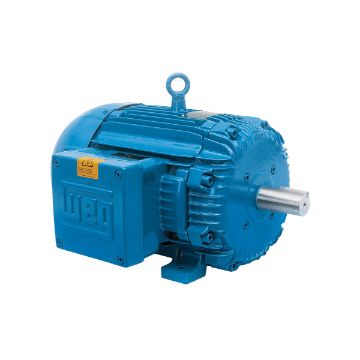

WEG 01518XT3E254T Continuous-Duty AC Motor 15 hp 254T Frame

Product Description

WEG 01518XT3E254T is a continuous-duty AC motor designed for reliable operation in various environments. This motor features a totally enclosed fan-cooled enclosure and operates at fifteen horsepower. It is suitable for voltages of two hundred eight, two hundred thirty, or four hundred sixty VAC with a speed of one thousand seven hundred seventy rpm. The motor is designed for three-phase applications, making it ideal for industrial use.

• Explosion-proof design for hazardous locations.
• Cast iron construction ensures durability.
• Meets NEMA Premium efficiency standards.

Product Highlights

This motor is built to withstand demanding conditions while providing effective performance for industrial tasks. It is certified for use in variable frequency drive (VFD) applications.

Product Information

Standard Information

• Brand: WEG
• Type: Continuous-Duty

Technical Specifications

• Frame: 254T
• Phase: 3
• Speed: 1770 rpm
• Horsepower: 15 hp
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 40.7 to 36.8/18.4 A
• Frequency Rating: 60 Hz
• Rotation: CW/CCW
• Mounting Type: Footed
• Torque Rating: 43.9 ft-lb
• Shaft Size: 1-5/8 in Dia x 4 in L
• Service Factor: 1.15
• Insulation Class: Class F
• Material: Cast Iron
• Operating Temperature: -20 to 40 deg C
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
