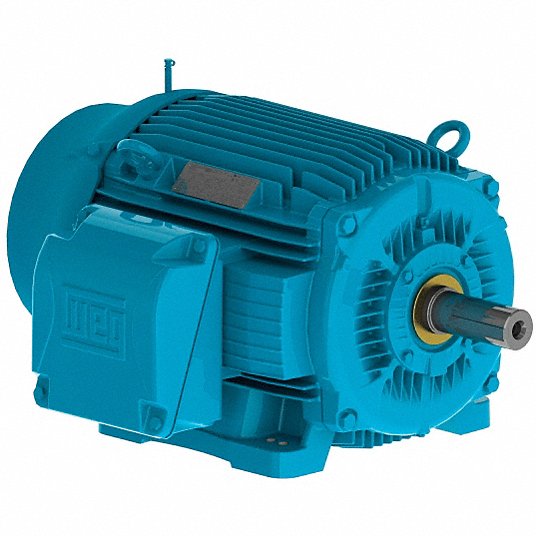

WEG 01518ST3QIE254T-W22 MOTOR 15HP 4P 254/6T WFF2

Product Description

The WEG Electric Corp MPN 01518ST3QIE254T-W22 is a reliable AC motor designed for continuous-duty applications. With a power output of fifteen horsepower, this motor operates at a voltage of four hundred sixty VAC, making it suitable for various industrial uses.

• Lightweight cast iron construction for durability.
• IP56 rating providing protection against dust and water.
• Standardized dimensions fit into most installation environments.

Product Highlights

This motor is particularly useful for general purpose applications. It features a totally enclosed fan-cooled enclosure, ensuring efficient operation even in demanding conditions.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Warranty: 5 Years

Technical Specifications

• Amperage Rating: 18 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 24.945 inches long
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 254/6T
• Frequency Rating: 60 Hz
• Horsepower: 15 hp
• Insulation Class: Class F
• Mounting Type: Footed
• Number of Speeds: 1
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 1-5/8 inches diameter x 4 inches long
