Weg 01518OT3E254T-W40 Motor 15 HP 4P 254T

Product Description

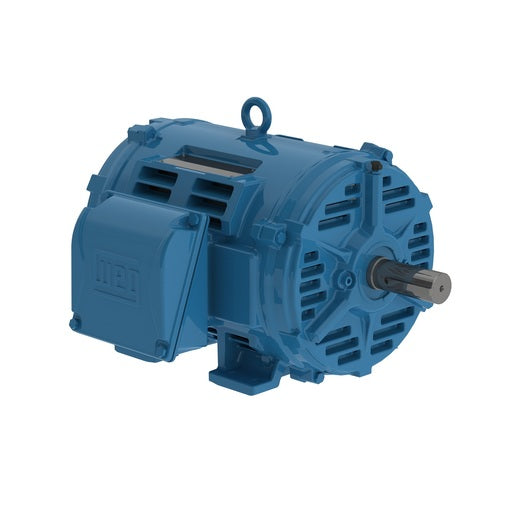

The WEG 01518OT3E254T-W40 motor is a 15 HP three-phase general-purpose cast iron motor designed for environments where dirt and moisture are minimal. The ODP cast iron frame provides maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness, and durability. It is widely used in applications such as compressors, pumps, and chillers.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• Dual rated 60/50Hz (190-220/380-415V @ 50Hz)

Product Highlights

This WEG motor delivers high performance with a cast iron frame and ODP enclosure, ensuring optimal energy savings for industrial applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 01518OT3E254T-W40
• Country of Origin: Brazil

Technical Specifications

• Country of Origin (subject to change): Brazil
• NEMA MG-1: Standard
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 4
• Degree of Protection: IP23
• Synchronous speed: 1800 rpm
• Output rating: 15 HP
• Mounting: F-1
• Flange: Without
• Terminal box: Left position
• Enclosure: IC01 - ODP
• Application: General Purpose
• Output KW: 11.0
• Output RPM: 1775
• Frame Size NEMA: 254T
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP23
• Shaft Diameter: 1-5/8
• Full Load Amp: 35.0/17.5
• Service Factor: 1.25
