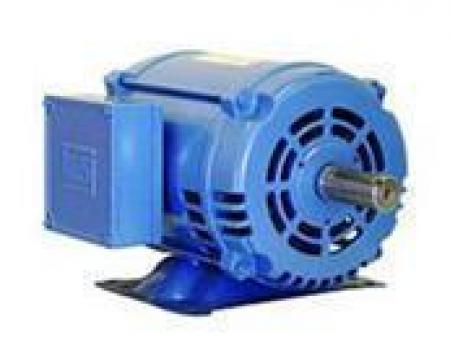

WEG 01518OT3E254T-S Motor 15HP 230/460V

Product Description

The WEG 01518OT3E254T-S Motor is a 15HP motor designed for general purposes. This three-phase motor operates at 230/460 volts, making it highly versatile for various applications. With 1775 RPM speed, it ensures efficient and reliable performance.

• 15 horse power motor
• 230/460 volts
• 1775 RPM speed

Product Highlights

The WEG 01518OT3E254T-S Motor features aluminum endshields, cast iron flanges for strength, and an open drip-proof enclosure for added protection. It uses rolled steel material for the frame and has ball bearings for smooth operation.

Product Information

Standard Information

• Amperage Rating: 41.1 to 37.2/18.6 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Dimensions: 20.472 in L

Technical Specifications

• Enclosure Type: Open Drip-Proof
• Frame: 254/6T
• Frequency Rating: 60 Hz
• Horsepower: 15 HP
• Insulation Class: Class F
• Material: Rolled Steel
• Mounting Type: Footed
• Number of Speeds: 1
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.15
• Shaft Size: 1-5/8 in Dia x 4 in L
• Speed: 1775 rpm
• Manufacturer: WEG Electric Corp
