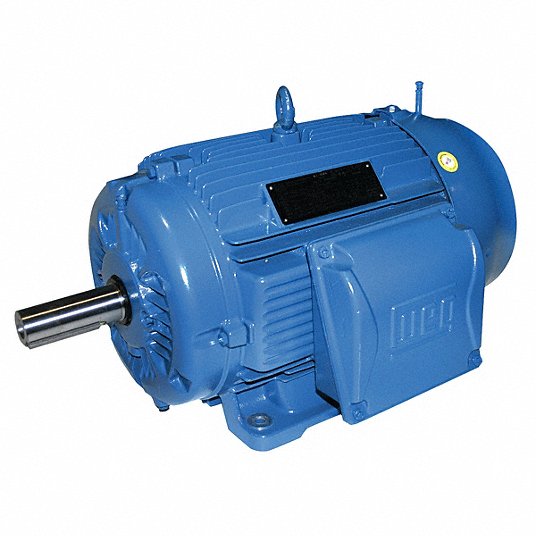

WEG 01518ET3Y160L-W22 MOTOR 20HP 4P 160L WFF2

Product Description

The WEG 01518ET3Y160L-W22 is a robust 20 horsepower AC motor designed for various general-purpose applications. This motor operates at 460 VAC and uses a three-phase system to provide reliable performance for many industrial tasks. With a speed of 1775 RPM and a service factor of 1.25, it suits demanding environments.

• 20 HP with 3 phase power
• Totally enclosed fan cooled design
• Regreasable ball bearings for extended life

Product Highlights

This motor is built to comply with European standards, ensuring quality and reliability in its operation. With a cast iron housing, it is durable and suitable for a variety of settings.

Product Information

Standard Information

• Brand: WEG ELECTRIC CORP
• UPC: 7891327482548

Technical Specifications

• Horsepower: 20 HP
• Frame: 160L
• Amperage Rating: 25 A
• Enclosure Type: Totally Enclosed Fan Cooled
• Dimensions: 25.276 inches long
• Rotation: CW/CCW
• Shaft Size: 42 mm diameter
• Mounting Type: Footed
• Special Features: IEC Metric Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Service Factor: 1.25
• Constant Torque Speed Range: 20:1
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Material: Cast Iron
