Weg 01518ET3P254T-W22 W22 NEMA Premium Efficiency 15 HP 4P 254/6T

Product Description

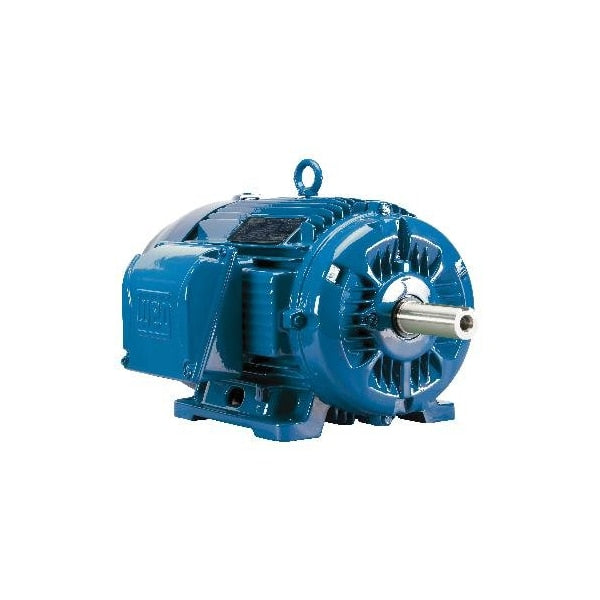

The WEG 01518ET3P254T-W22 electric motor features a cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures. The W22 motors are suitable for a variety of industrial applications. It is engineered for reliability and meets IE3 efficiency standards, reducing energy costs.

• NEMA MG-1
• 60 Hz
• 200-208 V

Product Highlights

This WEG motor is ideal for pumps, fans, and compressors, ensuring long-lasting performance in continuous duty applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 01518ET3P254T-W22
• Country of Origin: Brazil

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60 Hz
• Voltage: 200-208 V
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 15 HP
• Mounting: F-1
• Flange: Without
• Terminal box: Left position
• Enclosure: IC411 - TEFC
• Application: General Purpose
• Output KW: 11
• Output RPM: 1768
• Frame Size NEMA: 254/6T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Full Load Amp (FLA): 41.4
• HP: 15
• Hz: 60
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 254/6T
• Motor Type: Premium Efficient
• Phase: 3
• Service Factor: 1.25
• Speed (RPM): 1800
• Frame: 254/6T
• Horsepower: 15 hp
• Rated Speed: 1765 rpm
• Rated Current: 41.4 A
• Rated Torque: 5.94 ft.lb
• Frame Material: Cast Iron
• Approx. Weight: 311 lb
• Motor Service Factor: 1.25
• Nominal Efficiency: 0.924
• Manufacturer Part #: 01518ET3P254T-W22
• Series: Severe Duty
• Rated Voltage: 200V
• No Load Current: 18.4 A
