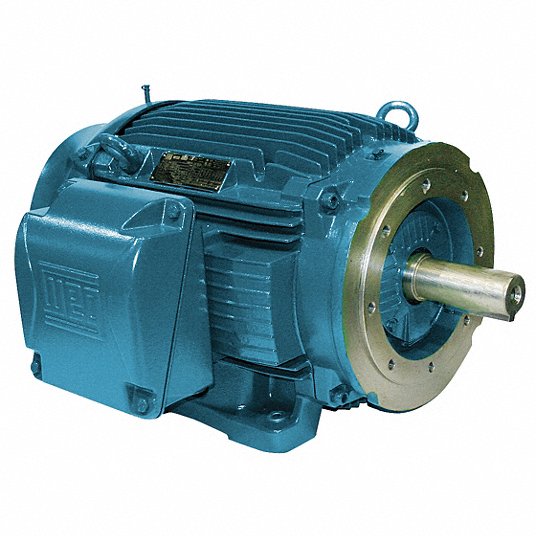

WEG 01518ET3E254TC-W22 MOTOR 15HP 4P 254/6TC WFF2

Product Description

The WEG 01518ET3E254TC-W22 is a 15 horsepower AC motor designed for continuous-duty general applications. This motor operates on 208, 230, or 460 volts with a frequency of sixty hertz, offering versatility for different setups. It features a ball bearing design and totally enclosed fan cooled (TEFC) enclosure for enhanced durability and efficiency.

• 15 horsepower rating
• Corrosion-proof, cast iron construction
• IP55 rated for protection against dust and water

Product Highlights

This motor is suitable for general purpose applications, ensuring reliable performance in various conditions. The robust construction and efficient design make it a dependable choice for trade professionals.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Application Type: General Purpose AC Motors

Technical Specifications

• Horsepower: 15 hp
• Amperage Rating: 39.8 to 36/18 A
• Frequency Rating: 60 Hz
• Frame: 254/6TC
• Enclosure Type: Totally Enclosed Fan Cooled
• Material: Cast Iron
• Mounting Type: C-Face Footed
• Dimensions: 24.945 in L
• Shaft Size: 1-5/8 in Dia x 4 in L
• Rotation: CW/CCW
• Service Factor: 1.25
• Constant Torque Speed Range: 20:1
• Number of Speeds: 1
• Insulation Class: Class F
• Bearing Type: Ball
