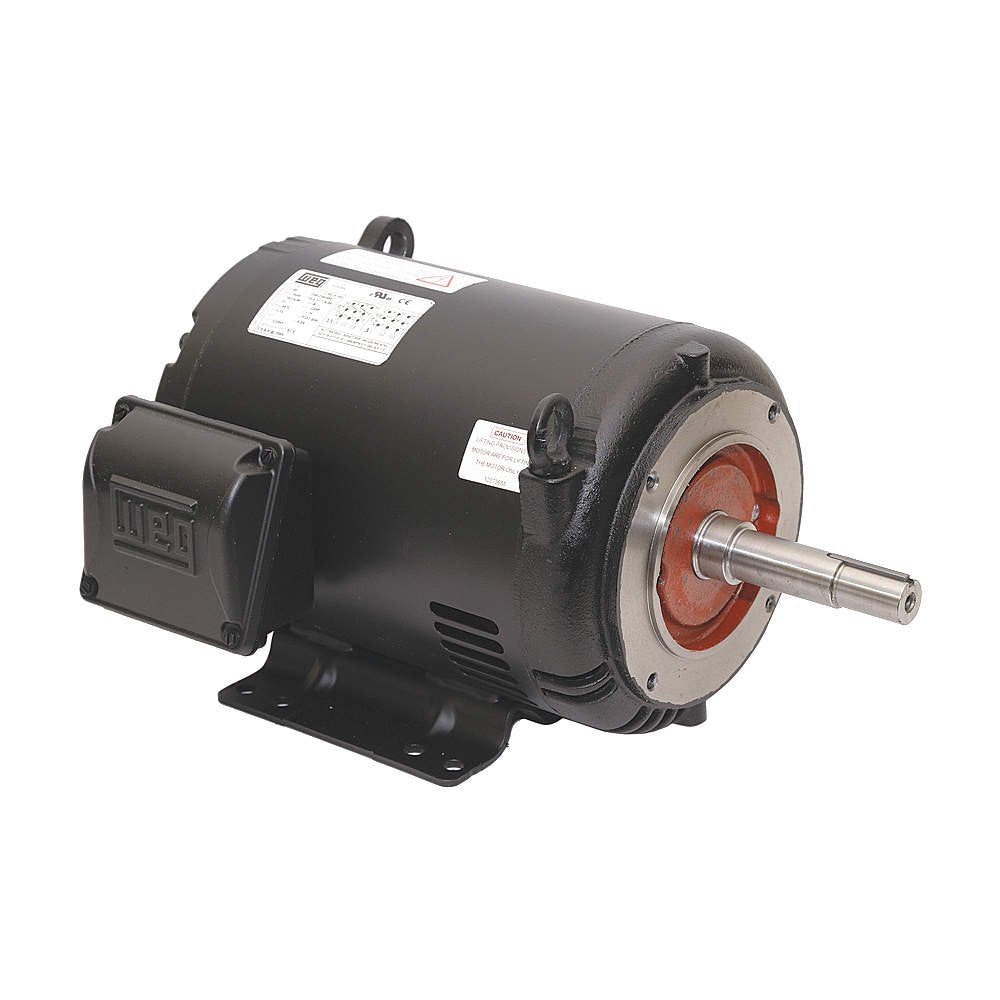

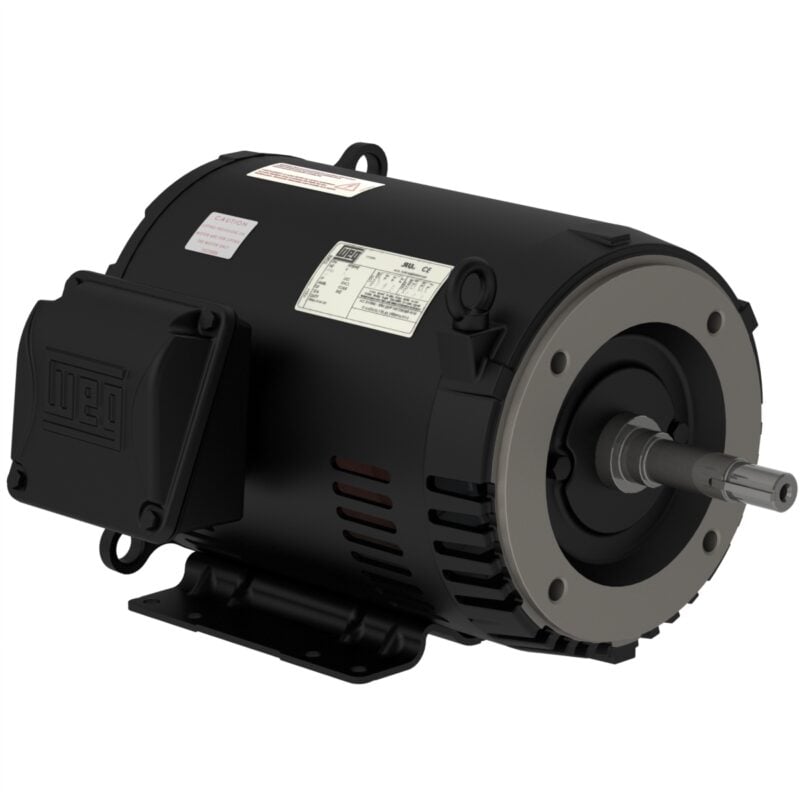

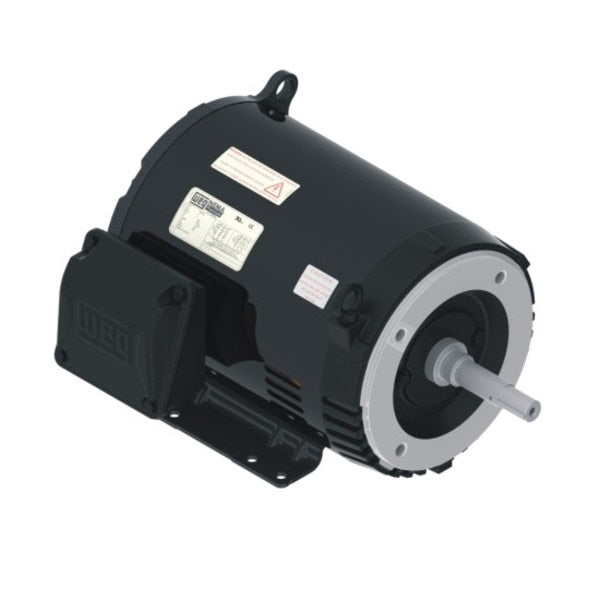

Weg 01036OT3E213JM-S W01 odp nema premium efficiency "jm" type close coupled pump motor, 10 hp, 213/5jm frame

Product Description

The WEG 01036OT3E213JM-S W01 ODP NEMA Premium Efficiency "JM" Type Close Coupled Pump Motor is a 10 HP motor designed for demanding applications where dirt and humidity are minimal. These motors provide maximum ventilation and heat dissipation. It features a rolled steel frame for robustness and low weight.

• Oversized diagonally split aluminum terminal box exceeds IP55 requirements and is rotatable in 90 degrees increments.
• Color coded/numbered leads as standard for easy wiring.
• NEMA Premium efficiency rating.

Product Highlights

This WEG motor is designed for performance and energy savings, suitable for pump applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 01036OT3E213JM-S
• Country of Origin: Brazil

Technical Specifications

• Manufacturer: WEG
• Brand: WEG
• Product Group: BISS
• Model / MPN: 2690179
• Number of Items: 1.0
• Application: Closed Coupled
• Output HP: 10
• Output KW: 7.5
• Output RPM: 3535
• Frame Size NEMA: 213/5JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Voltage: 230/460//190-220/380-415 V
• Frequency: 60//50 Hz
• Phase: Three Phase
• Frame: 213/5
• Poles: 02
• Rated speed: 3535 rpm
• Slip: 1.81 %
• Rated Current: 24.0/12.0 A
• LR Amperes: 163/81.6 A
• LRC: 6.8x(Code H)
• No Load Current: 9.32/4.66 A
• Rated Torque: 14.9 ft.lb
• Locked Rotor Torque: 200 %
• Breakdown Torque: 280 %
• Insulation Class: F
• Service Factor: 1.15
• Moment of Inertia: 0.4651 sq.ft.lb
• Design: B
• Locked Rotor Time: 19s (cold) 11s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Degree of Protection: IP21
• Altitude: 1000 m
• Cooling Method: ODP Open Drip Proof Open Motor
• Mounting: F-1
• Rotation Direction: Both
• Noise Level: 66.0 dB(A)
• Starting Method: Direct On Line
• Enclosure Material: Steel Plate
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6209
• Front Bearing Type: Ball
• Front Sealing Type: No Sealing
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6206
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 3:1
• Standard: NEMA MG-1
• Number of poles: 2
• Synchronous speed: 3600 rpm
• Output rating: 10 HP
• Flange: C
• Terminal box : Left position
• Enclosure: IC01 - ODP
• Rated Voltage (V): 230/460
• Rated Current (A): 24.0/12.0
• L. R. Amperes (A): 163/81.6
• Moment of Inertia (J): 0.4651 sq.ft.lb
• Ambient Temperature: -20°C to +40°C
• Approx. Weight (lb): 125
• Efficiency 25%: 88.3
• Efficiency 50%: 88.5
• Efficiency 75%: 89.5
• Efficiency 100%: 89.5
• Power Factor 25%: 0.47
• Power Factor 50%: 0.74
• Power Factor 75%: 0.84
• Power Factor 100%: 0.88
• Frame Material: Rolled Steel
• Impregnation Method: Dip and Bake Polyester
• Main Terminal Box Hole: 1.377″
• Terminal Block: Without
• Shaft Material: SAE 1040/45 Carbon Steel
• Painting: Munsell N 1 – Matte 207N (ISO 12944 – C2)
• Grounding Lugs: Single
• Fan Cover Material: Without
• Tropicalized Painting: Without
• Bearing cap: Yes
• Drip Cover: Without
• Overload Protector (phenolic): Without
• Screw Cap: Carbon Steel SAE 1010/20
• Full Load Efficiency: 89.5 %
• Voltage Rating: 230/460
• Full Load Amps: 12
• RPM: 3600 rpm
• Motor Application: Pump Duty
• Hz: 60 Hz
• Input Phase: Three Phase

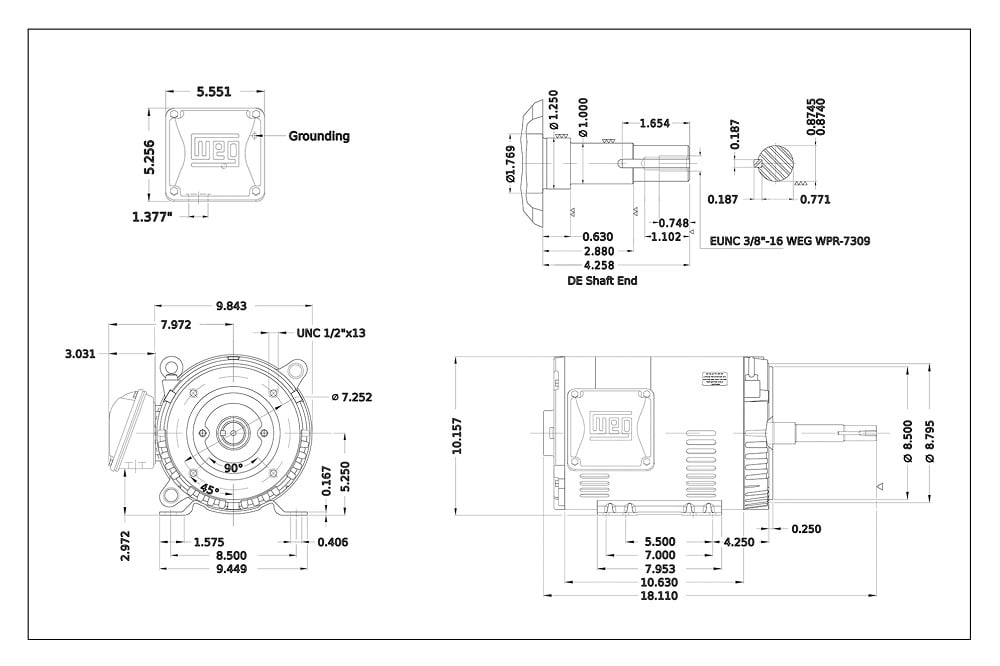

• C Dimension: 18.11 in
• HP: 10
• Enclosure Designation: ODP - Open Drip Proof
• Speed (RPM): 3600
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Frame Size: 213-215JM
• Motor Type: Premium Efficient
