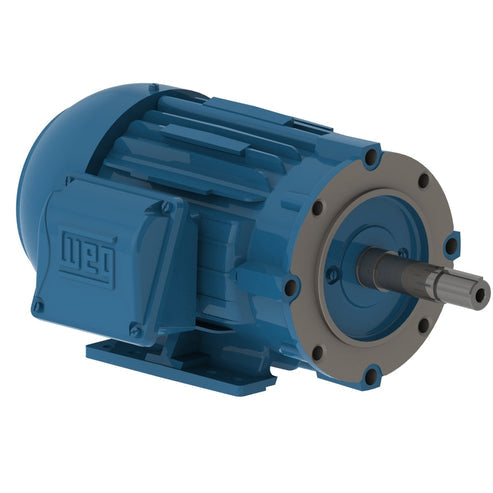

WEG 01036ET3E215JM-W22 MOTOR 10HP 2P 213/5JM WFF2

Product Description

WEG AC Motor is a versatile choice for applications requiring continuous operation. The MPN 01036ET3E215JM-W22 features a power output of ten horsepower, suitable for various pumping tasks. It operates on 208/230/460 VAC and requires a current draw ranging from 25.7 to 23.2/11.6 A.

• Three-phase design with a speed of 3520 rpm.
• Totally enclosed fan cooled (TEFC) enclosure for durability.
• Foot-mounted with a compact frame size of 213/5JM.

Product Highlights

This motor is built for efficiency and reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Power Rating: 10 hp

Technical Specifications

• Amperage Rating: 25.7 to 23.2/11.6 A
• Application Type: Jet Pump (JM/JP) Motors
• Dimensions: 20.392 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 213/5JM
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 7/8 in Dia x 4-1/8 in L
• Speed: 3520 rpm
• Temperature Rating: -20 to 40 deg C
