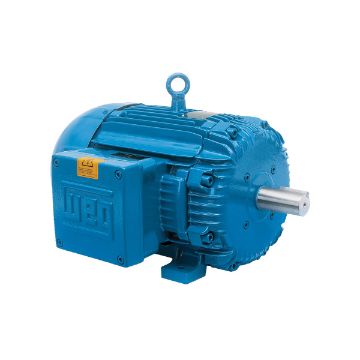

WEG 01018XT3E215T Continuous-Duty AC Motor 10 hp 215T

Product Description

The WEG Continuous-Duty AC Motor with MPN 01018XT3E215T is engineered for demanding applications. It features a robust design suitable for environments with explosive atmospheres. This explosion proof motor supports a power rating of ten horsepower and operates at voltages of 208, 230, and 460 VAC. It adheres to NEMA Premium efficiency standards ensuring reliable performance.

• Explosion proof design for hazardous locations.
• Robust construction with a totally enclosed fan cooled enclosure.
• Footed mounting for stable installation.

Product Highlights

This motor is built to withstand extreme conditions while delivering consistent power and efficiency.

Product Information

Standard Information

• Brand: WEG
• Manufacturer: WEG

Technical Specifications

• MPN: 01018XT3E215T
• Horsepower: 10 hp
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 28.1 to 25.4/12.7 A
• Frequency Rating: 60 Hz
• Speed: 1765 rpm
• Frame: 215T
• Enclosure Type: Totally Enclosed Fan Cooled
• Dimensions: 19.45 in L
• Shaft Size: 1-3/8 in Dia x 3-3/8 in L
• Torque Rating: 29.4 ft-lb
• Service Factor: 1.15
• Insulation Class: Class F
• Temperature Rating: -20 to 40 deg C
• Material: Cast Iron
• Rotation: CW/CCW
• Mounting Type: Footed
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
