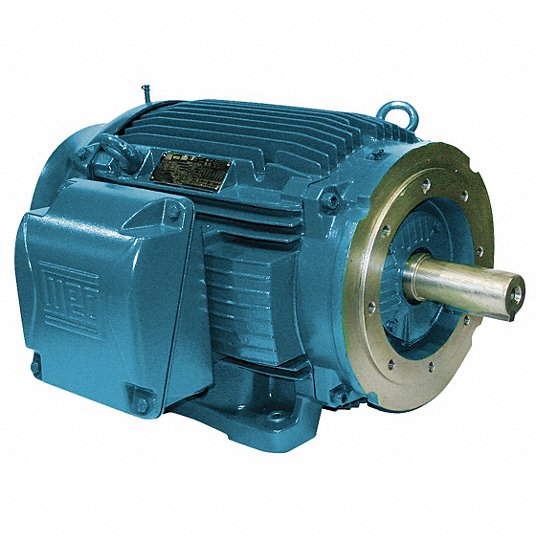

WEG 01018ET3E215TC-W22 10HP 1800 3 60 208-230/460V

Product Description

WEG Electric Corp offers the 01018ET3E215TC-W22, a powerful AC motor designed for general purpose applications. This 10 horsepower motor operates on 208, 230, or 460 volts, and is ideal for various industrial and commercial tasks.

• Amperage range of 27.4 to 24.8/12.4 A
• Totally enclosed fan cooled for durability
• Ball bearing design for enhanced performance

Product Highlights

This motor is suitable for continuous-duty, capable of handling high-torque applications with a service factor of 1.25. It features a C-face footed mounting type and operates efficiently across a wide temperature range. With a frame size of 213-5TC and a robust cast iron construction, it ensures longevity and durability.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Model Number: 01018ET3E215TC-W22

Technical Specifications

• Amperage Rating: 27.4 to 24.8/12.4 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 19.517 inches in length
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 213-5TC
• Frequency Rating: 60 Hz
• Horsepower: 10 hp
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: C-Face Footed
• Number of Speeds: 1
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 1-3/8 inches Diameter x 3-3/8 inches Length
