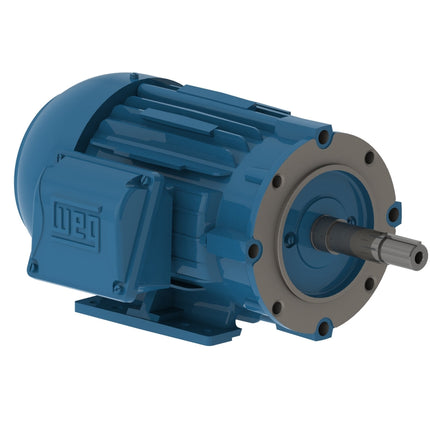

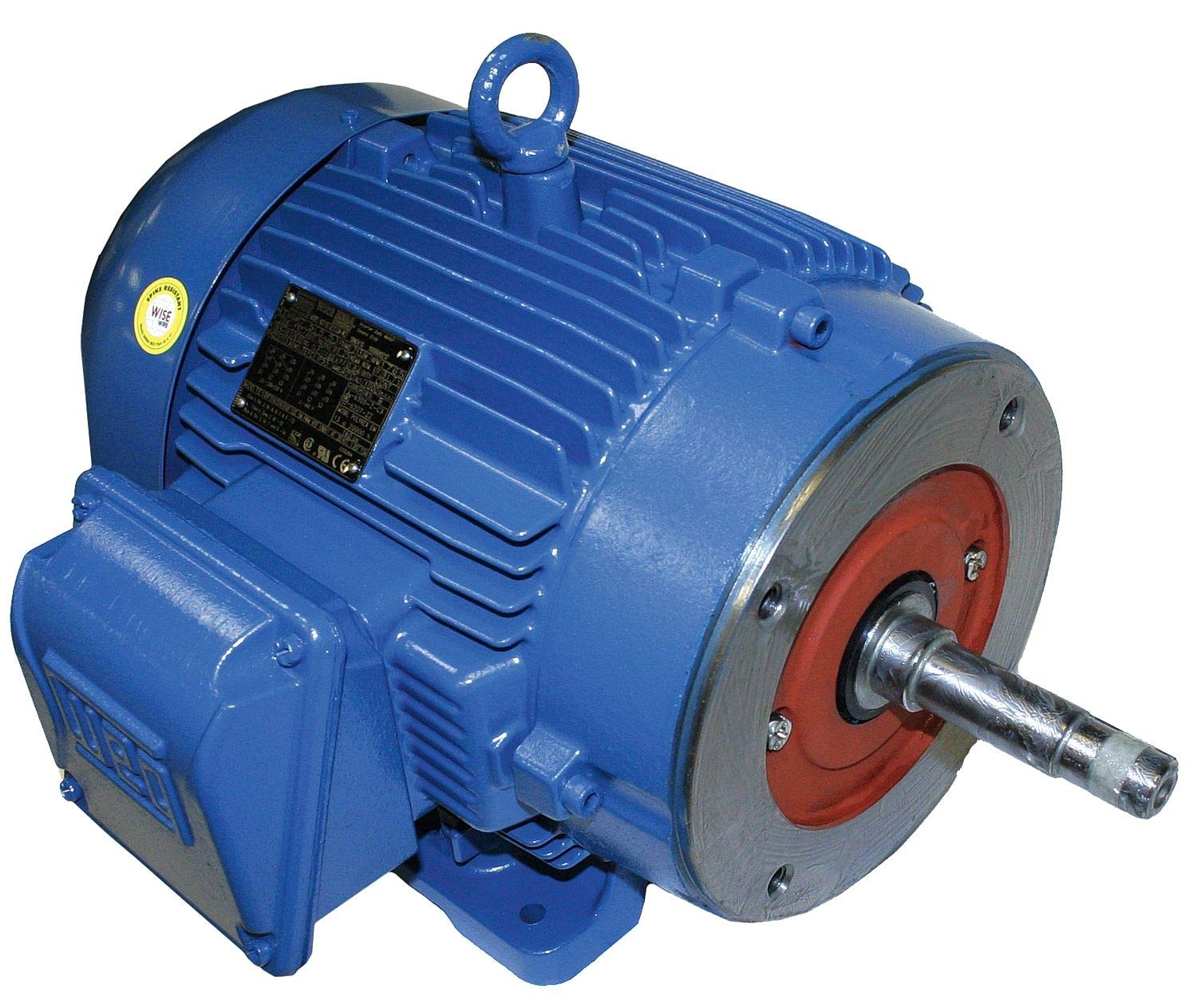

Weg 01018ET3E215JM-W22 Pump Mtr, 3ph, 10hp, 1765, 215jm

Product Description

The WEG 01018ET3E215JM-W22 is a 3-Phase pump motor with 10hp and 1765 RPM. This motor features a 215JM frame and is designed for close-coupled pump applications. It supports voltages of 208-230/460 and is totally enclosed and fan-cooled (TEFC).

• UL Recognized, CSA Certified, CE Compliant
• NEMA Premium Efficient
• Totally Enclosed Fan-Cooled

Product Highlights

This WEG pump motor is ideal for various industrial applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 01018ET3E215JM-W22

Technical Specifications

• Voltage: 208-230/460
• Phase: 3-Phase
• Horsepower: 10hp
• RPM: 1765
• Frame: 215JM
• MPN: 01018ET3E215JM-W22
• Manufacturer: WEG
• Brand: Weg Electric
• Enclosure Rating: IP55
• Enclosure: TEFC
• Construction: Cast Iron
• Full Load Amp (FLA): 12.4
• Hz: 60
• KW: 7.5
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 213-215JM
• Motor Type: Premium Efficient
• Service Factor: 1.25
• Speed (RPM): 1800
• Frequency: 60 Hz
• Mounting: Foot Mount
• Current Rating: 12.4 A
• Composition: Cast Iron
• Output: 10 HP
• Poles: 4
• Torque: 29. 4 lb. ft
• Full Load Amps: 27. 4-24. 8/12. 4 A
• Efficiency (100%): 91. 7
• Power factor (100%): 0. 83
• Insulation: F
• Noise: 58 dB(A)
• No load current: 11. 3/5. 65 A
• Locked rotor current (II/In): 6. 4
• Output HP: 10 HP
