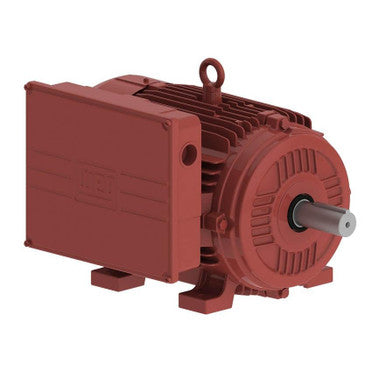

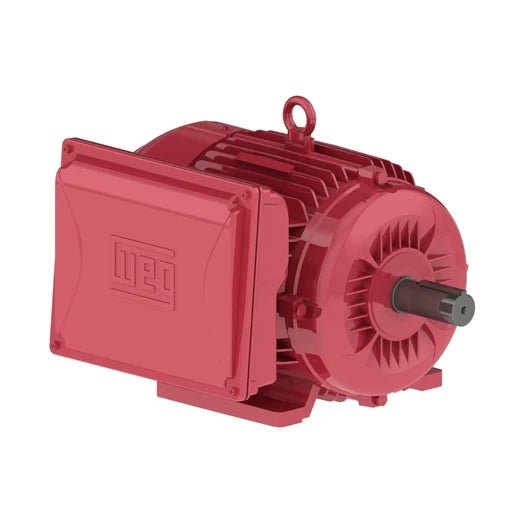

Weg 01018ES1DFD215T-W22 W22 10 Hp 4-pole 215T Ic411 Tefc Foot-mounted (Repl 01018ES1DFD215T)

Product Description

Weg 01018ES1DFD215T-W22 is a 10 Hp single-phase W22 farm duty AC motor rated 230 V, 60 Hz with an Ic411 TEFC enclosure and IP55 protection. It is a four-pole design with 1800 rpm synchronous speed (rated speed 1740 rpm) in a 215T rigid foot-mounted frame (F-1) and left-position terminal box. The motor includes Class F insulation and ball bearings and is intended for agricultural applications such as pumps, fans, and conveyors.

• Output: 10 Hp (7.5 kW); single-phase 230 V, 60 Hz; four poles, synchronous speed 1800 rpm, rated speed 1740 rpm
• Enclosure: IC411 (TEFC) with IP55 protection; rigid foot-mounted 215T frame, mounting code F-1, left-position terminal box
• Design features: Class F insulation, double shielded ball bearings, high starting torque for heavy starting loads, service factor 1.15

Product Highlights

10 Hp single-phase TEFC farm duty motor, 215T foot-mounted frame, 230 V 60 Hz, IP55, Class F insulation

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 01018ES1DFD215T-W22

Technical Specifications

• Manufacturer: WEG
• MPN: 01018ES1DFD215T-W22
• Alternate Part Number: 01018ES1DFD215T
• Model/Spec Number: 14229637
• Application: Farm Duty
• Output Power: 10 HP
• Output Power (kW): 7.5 kW
• Frequency: 60 Hz
• Input Voltage: 230 V
• Phase: Single-phase (1)
• Poles: 4
• Synchronous Speed: 1800 rpm
• Rated Speed: 1740 rpm
• Rated Torque: 29.8 ft.lb
• Full Load Current: 40.5 A
• No Load Current: 12.2 A
• Locked Rotor Current (II/In): 6.7
• Service Factor: 1.15
• Frame: 215T
• Frame Material: Cast iron (W22 platform)
• Mounting Type: Foot-mounted (rigid base, F-1)
• Mounting Code: F-1
• Terminal Box Position: Left position
• Enclosure: IC411 - TEFC (Totally Enclosed Fan Cooled)
• Degree of Protection: IP55
• Insulation Class: Class F
• Bearings: Double shielded ball bearings
• Shaft Material: 1045 carbon steel
• Starting Method / Feature: High starting torque suitable for heavy starting loads; start capacitor provided for 2 Hp and up (per manufacturer specification)
• Thermal Protection: DFD thermal overload protection (W22 platform)
• Efficiency: 83.0% (at 100% load, per spec)
• Power Factor (100%): 0.97
• Torque (lb.ft): 29.8
• Standards: NEMA MG-1
