Product Description

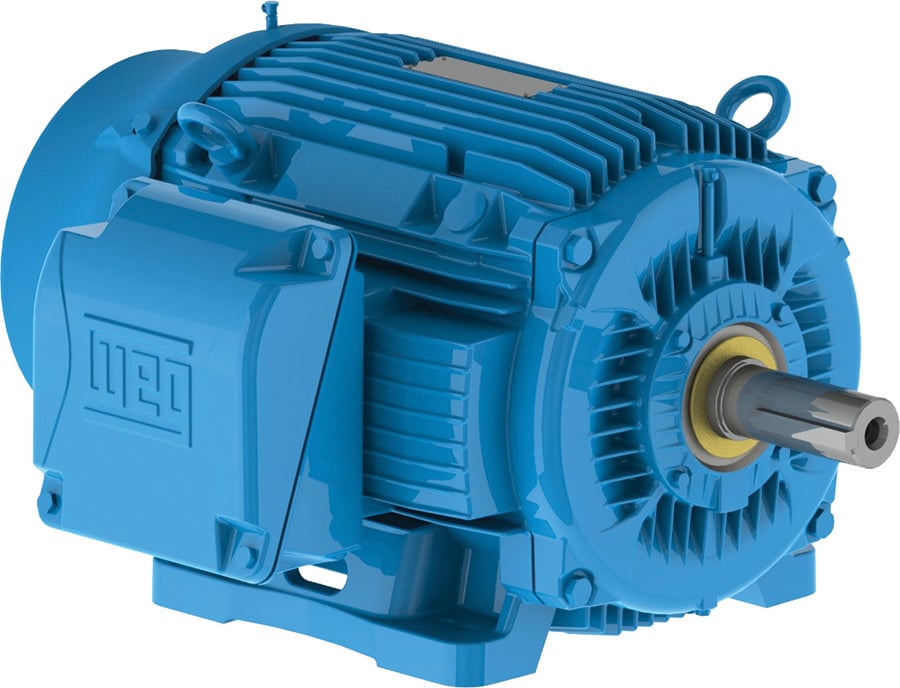

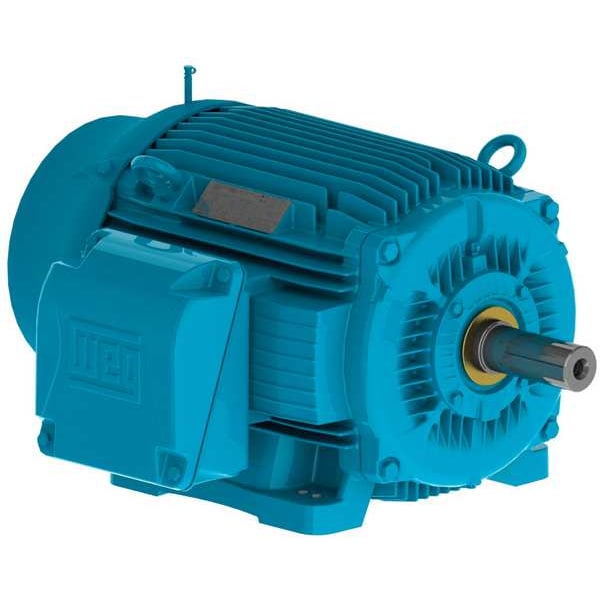

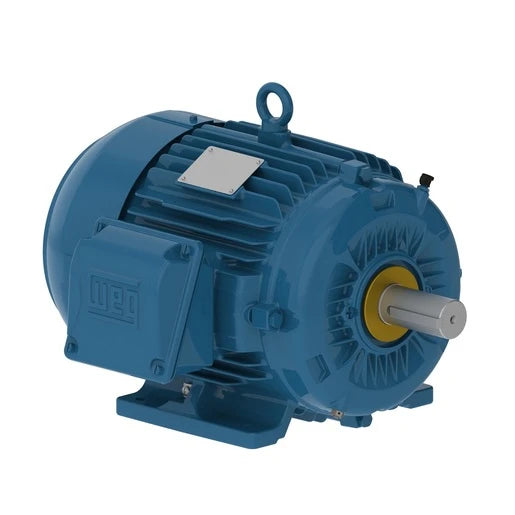

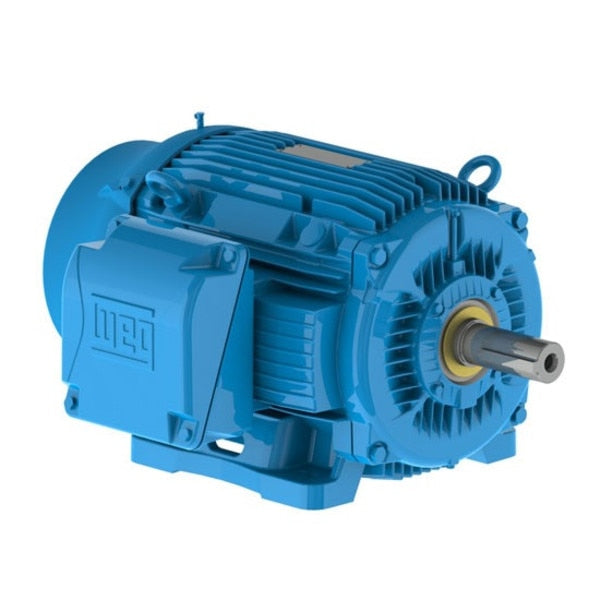

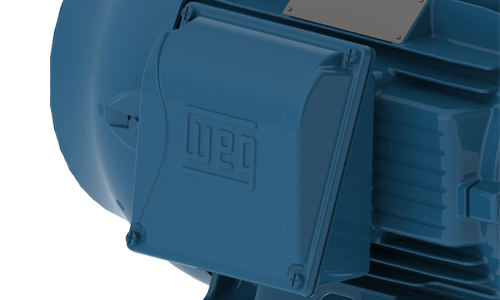

The WEG 00736ST3QIE213T-W22 W22 IEEE 841 motors are designed for petrochemical and chemical industries. It features a cast iron frame, flexible mounting, solid feet, low noise levels and anticorrosive internal coating. This motor is suited for Pulp & Paper mills, Steel mills, Petrochemical Plants, and other diverse demanding applications requiring severe duty and long life.
- NEMA Premium efficiency rating
- Inpro seal bearing isolators (both ends)
- Epoxy paint system exceeds 250hrs salt spray test
Product Highlights
The WEG W22 platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise which extends the life of the motor.
Product Information
Standard Information
-
Brand: WEG
-
Manufacturer Part Number: 00736ST3QIE213T-W22
-
Country of Origin: Multiple
Technical Specifications
-
Standard: NEMA MG-1
-
Frequency: 60 Hz
-
Voltage: 460 V
-
Number of poles: 2
-
Degree of Protection: IP56
-
Synchronous speed: 3600 rpm
-
Output rating: 7.5 HP
-
Mounting: F-1
-
Flange: Without
-
Terminal box: Left position
-
Enclosure: IC411 - TEFC
-
Brand: WEG
-
Application: General Purpose
-
Output KW: 5.5
-
Output RPM: 3525
-
Frame Size NEMA: 213/5T
-
Mount NEMA: With Base
-
Enclosure NEMA: IC411 - TEFC
-
Enclosure IEC: IP56
-
HP: 7 1/2 hp
-
Nameplate RPM: 3,520 RPM
-
Motor Mounting Type: Rigid Base
-
Full Load Amps: 8.8 A
-
Frame: 213T
-
Motor Bearings: Ball
-
Motor Service Factor: 1.25
-
Motor Design: Three-Phase
-
Motor Enclosure Design: Totally Enclosed Fan Cooled
-
RPM Range: 3001-3600
-
Phase: Three Phase
-
No. of Speeds: 1
-
Motor Application: Severe Duty
-
Motor Shaft Rotation: CW/CCW
-
Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
-
Hz: 60 Hz
-
Ins. Class: F
-
Max. Ambient Temp.: 40 Degrees C
-
Motor Frame Material: Cast Iron
-
Motor Mounting Position: Horizontal/Vertical Shaft Down
-
Motor Shaft Design: Keyed
-
Nominal Efficiency: 89.5 %
-
Standards: CE, CSA, IEEE 841, NOM, UL
-
CC Number: CC029A
-
Motor Thermal Protection: None
-
Motor Sub Application: IEEE 841 Severe Duty
-
Green Certification or Other Recognition: NEMA Premium(R) Rated
-
Usable @ 208V: Not Usable at 208V
-
Usable @ 200V: Not Usable at 200V
-
Duty Cycle: Continuous
-
Inverter Rating: 1000:1 Variable Torque, 20:1 Constant Torque
-
Rated speed: 3520 rpm
-
Slip: 2.22 %
-
Full Voltage - No Cables: 460 V
-
Rated Current: 8.76 A
-
LR Amperes: 63.1 A
-
LRC: 7.2x(Code H)
-
No Load Current: 2.70 A
-
Rated Torque: 11.2 ft.lb
-
Locked Rotor Torque: 210 %
-
Breakdown Torque: 300 %
-
Insulation Class: F
-
Service Factor: 1.25
-
Moment of Inertia: 0.4665 sq.ft.lb
-
Design: B
-
Locked Rotor Time: 39s (cold) 22s (hot)
-
Temperature Rise: 80 K
-
Maximum Room Temperature: 40 °C
-
Minimum Room Temperature: -20 °C
-
Altitude: 1000 m
-
Cooling Method: TEFC Totally Enclosed Fan Cooled
-
Rotation Direction: Both
-
Noise Level: 68.0 dB(A)
-
Starting Method: Direct
-
Enclosure Material: Iron
-
Front Bearing Shielding: C3
-
Front Bearing Size: 6308
-
Front Bearing Type: Ball
-
Front Sealing Type: Inpro/Seal
-
Rear Bearing Shielding: C3
-
Rear Bearing Size: 6207
-
Rear Bearing Type: Ball
-
Rear Sealing Type: No Rear Sealing
-
Grease Type: Mobil Polyrex EM
-
VFD Turndown VT: 1000:1
-
VFD Turndown CT: 20:1
-
Mounting Design: Foot Mount
-
Dimensions Length Less Shaft: 16 3/16 in
-
Overall Length: 19 9/16 in
-
Shaft Dia.: 1 3/8 in
-
Shaft Length: 3 3/8 in
-
Manufacturers Warranty Length: 3 yr
-
Item: Severe Duty Motor
