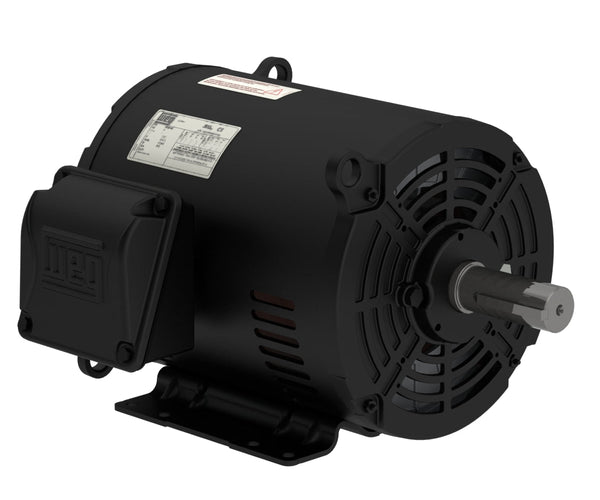

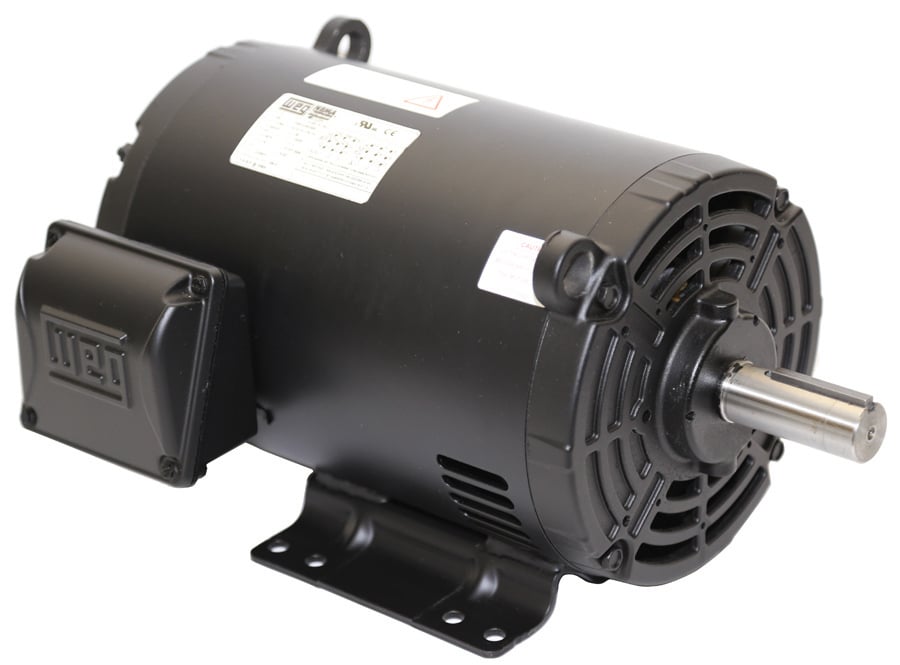

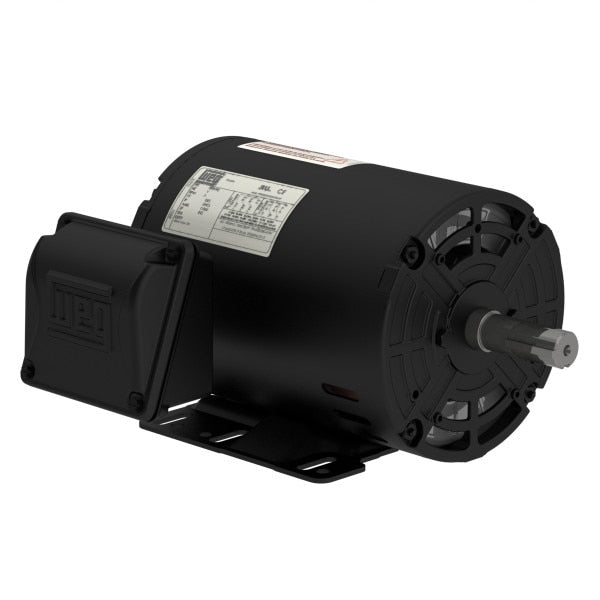

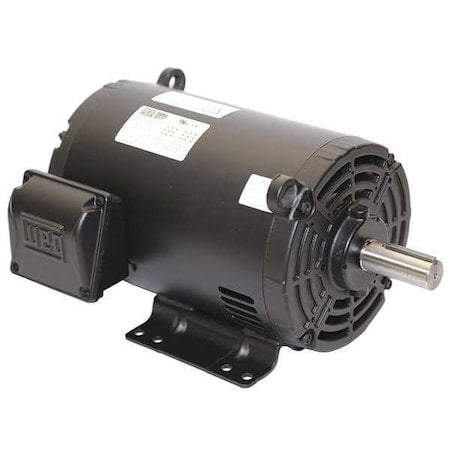

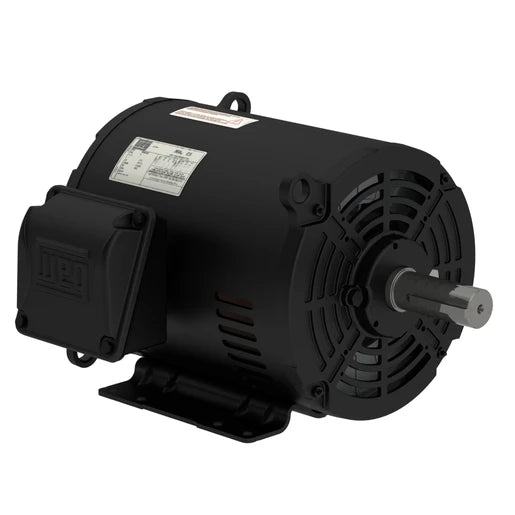

Weg 00736OT3E184T-S 3-Phase Motor 7.5 HP (182/4T Frame)

Product Description

WEG 00736OT3E184T-S is a WEG three-phase electric motor rated 7.5 HP. It provides a nominal speed of 3500 RPM and is dual-voltage rated at 230/460 V with a nameplate rated current of 8.6 A. The motor uses a 182/4T NEMA frame in an open dripproof enclosure and meets NEMA Premium efficiency. Certifications include UL (E104590) and CSA (70014057). It is intended for industrial motor-drive and general-purpose applications.

• Dual voltage 230/460 V with rated current 8.6 A; three-phase operation
• NEMA Premium efficient design in open dripproof (ODP) enclosure
• 182/4T frame, 3500 RPM nominal speed; certified UL (E104590) and CSA (70014057)

Product Highlights

3-phase 7.5 HP motor, 3500 RPM, 230/460 V, 182/4T frame, ODP, NEMA Premium, UL and CSA certified

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00736OT3E184T-S
• Country of Origin: Multiple

Technical Specifications

• Brand: WEG
• Manufacturer Part Number: 00736OT3E184T-S
• Product Type: Three-phase electric motor
• Horsepower: 7-1/2 HP
• Phase: 3-Phase
• Rated Speed (RPM): 3500
• Frame: 182/4T
• Rated Current: 8.6 A
• Voltage: 230/460 V
• Efficiency: NEMA Premium Efficient
• Enclosure: Open Dripproof (ODP)
• Certifications: UL (E104590), CSA (70014057)
• Intended Application: Industrial motor-drive and general-purpose applications
• Product GTIN: 7909158693108
• Number of Items: 1
• Mounting Type: Foot / Rigid Base
• Insulation Class: F
• Service Factor: 1.15
• Poles: 2
• Enclosure Rating: IP21
