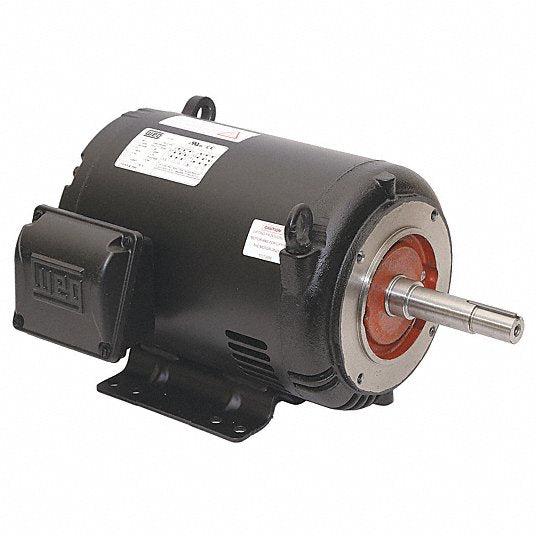

WEG 00736OT3E184JM-S MOTOR 7.5HP 2P 182/4JM WCA2

Product Description

The WEG 00736OT3E184JM-S is a three-phase AC motor designed for continuous duty applications. This motor operates at seven point five horsepower and is suitable for jet pump installations. It operates on a voltage of two hundred eight, two hundred thirty, or four hundred sixty VAC and features an open drip-proof enclosure for reliable performance in various conditions.

• Continuous-duty operation suitable for various applications
• Open drip-proof design for enhanced durability
• Comprehensive NEMA compliance for reliability

Product Highlights

This motor is engineered for durability and efficiency, making it ideal for HVAC systems and industrial settings.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Product SKU: WEG 00736OT3E184JM-S

Technical Specifications

• Horsepower: 7.5 hp
• Amperage Rating: 19.2 to 17.3/8.67 A
• Enclosure Type: Open Drip-Proof
• Frame: 182/4JM
• Speed: 3500 rpm
• Mounting Type: Footed
• Service Factor: 1.15
• Shaft Size: 7/8 in Dia x 4-7/64 in L
• Rotation: CW/CCW
• Temperature Rating: -20 to 40 deg C
• Insulation Class: Class F
• Material: Rolled Steel
• Frequency Rating: 60 Hz
• Application Type: Jet Pump (JM/JP) Motors
