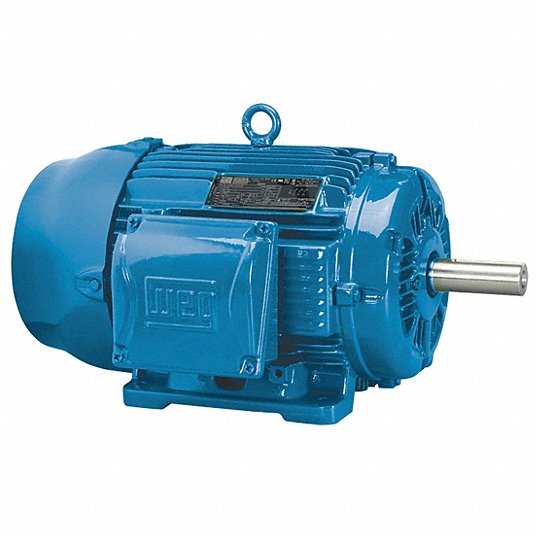

WEG 00736ET3E213T-W22 MOTOR 7.5HP 2P 213/5T WFF2

Product Description

The WEG Electric Corp MPN 00736ET3E213T-W22 is a three-phase AC motor designed for general purpose applications. This motor provides a power output of seven point five horsepower and operates on voltages of two hundred eight, two hundred thirty, or four hundred sixty VAC. With a frequency of sixty hertz, the motor achieves a maximum speed of three thousand five hundred twenty RPM.

• Continuous-duty operation
• Totally enclosed fan-cooled enclosure
• Regreasable ball bearings for maintenance

Product Highlights

This motor is suitable for various industrial and commercial uses. It features a robust cast iron construction, ensuring durability and corrosion resistance. The motor includes a footed mounting design and operates with CW/CCW rotation, accommodating different installation needs.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Application Type: General Purpose AC Motors

Technical Specifications

• Amperage Rating: 19.4 to 17.5/8.76 A
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Service Factor: 1.25
• Dimensions: 19.517 in L
• Frame: 213/5T
• Shaft Size: 1-3/8 in Dia x 3-3/8 in L
• Mounting Type: Footed
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed Fan Cooled
• Phase: 3 ph
• Constant Torque Speed Range: 20:1
• Rotation: CW/CCW
