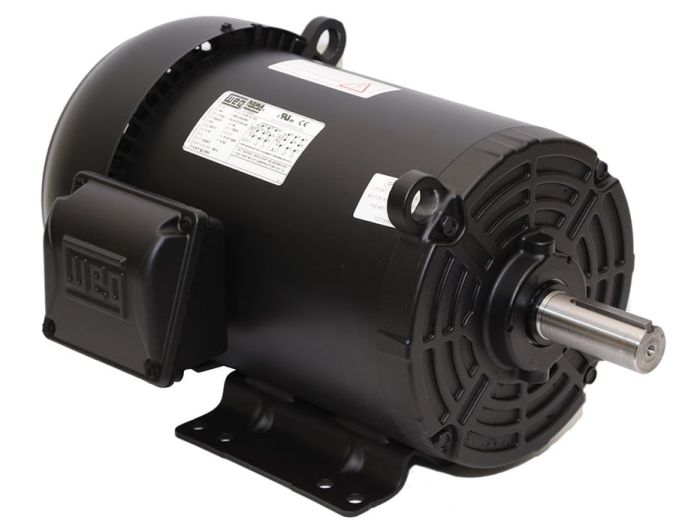

Weg 00736ET3E213T-S 7.5HP 3530rpm Motor 213/5T

Product Description

The WEG 00736ET3E213T-S 7.5HP Three Phase General Purpose Rolled Steel Motor is designed for applications needing robustness, low weight, and high performance. These motors feature good thermal performance and easy installation and maintenance. The steel plate frame and aluminum endshields provide torque and durability for demanding applications. Suitable for VFD operation as per NEMA MG1.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• 1 3/8" Keyed output shaft

Product Highlights

This WEG motor features a robust design with a steel frame and aluminum endshields, ensuring durability and efficient thermal performance for general-purpose applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00736ET3E213T-S

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 7.5
• Output KW: 5.5
• Output RPM: 3530
• Frame Size NEMA: 213/5T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415
• Manufacturer Part Number: 00736ET3E213T-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Speed: 3,600 RPM
• Phase: 3
• Frequency: 60 Hz
• Nominal Voltage: 208 VAC
• Enclosure: Totally Enclosed Fan Cooled
• Mounting: Foot Mount
• Current Rating: 8.67 A
• Service Factor: 1.15
• Composition: Steel
• Series: W01 (General Purpose)
• Mounting Design: Foot Mount
• Shaft Grounding Protection: None
