Weg 00736ET3E184T-W22 7.5 HP 3600 RPM 182/4T

Product Description

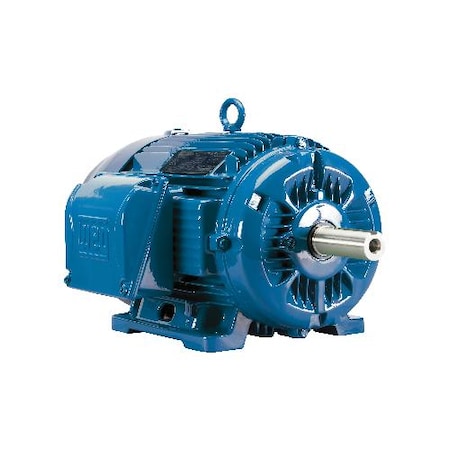

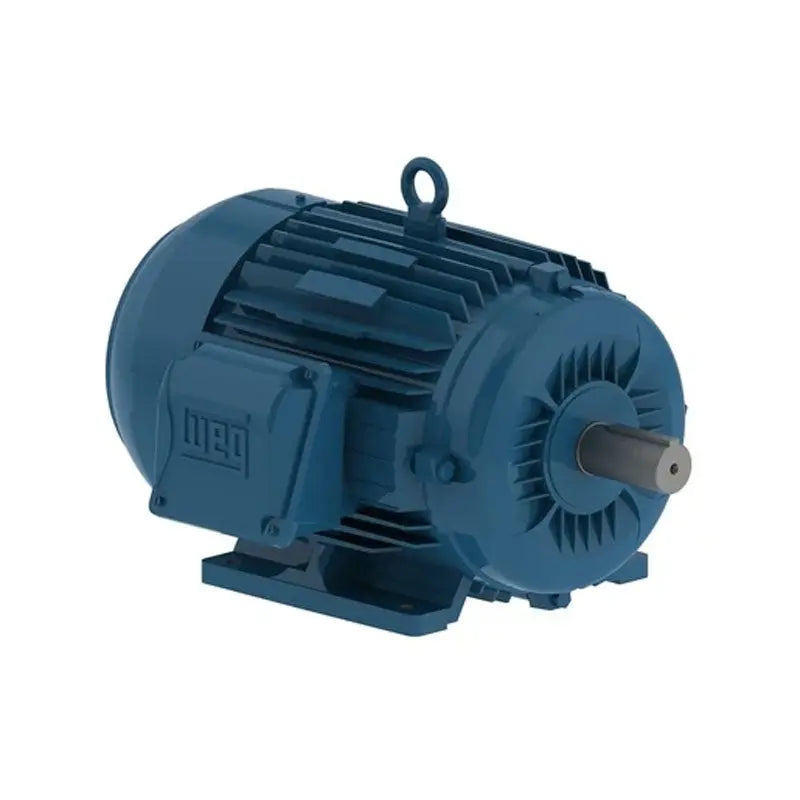

The WEG 00736ET3E184T-W22 is a 7.5 HP motor with a cast iron frame, flexible mounting, and solid feet. The W22 motors are suitable for a variety of industrial applications. It operates at 3600 RPM and is designed for premium energy efficiency and low operational temperatures.

• NEMA Premium efficiency rating
• Rated for IEEE45 and USCG 259 - Marine Duty
• Suitable for VFD operation as per NEMA MG1

Product Highlights

This WEG motor provides high performance and energy efficiency with a cooling system for optimized airflow and lower temperatures.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00736ET3E184T-W22
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 7.5
• FRAME [Specifications]: 182/4T
• VOLTAGE [Specifications]: 230/460
• Nameplate RPM [Specifications]: 3600
• Frame Material [Specifications]: CAST IRON
• Full Load Amps [Specifications]: 8.76
• Overall Length [Specifications]: 15.86
• Nominal Efficiency [Specifications]: 89.5
• Motor Mounting Type [Specifications]: FOOT
• Motor Service Factor [Specifications]: 1.25
• Motor Enclosure Design [Specifications]: TEFC
• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 7.5 HP
• Mounting: F-1
• Flange: Without
• Enclosure: IC411 - TEFC
• Application: General Purpose
• Output KW: 5.5
• Output RPM: 3485
• Frame Size NEMA: 182/4T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• RPM: 3600
• Volts: 208/230/460
• Phase: 3
• Manufacturer: WEG
• Classification: Three Phase
• Shaft Diameter: 1-1/8
• Mounting Design: Foot Mount
