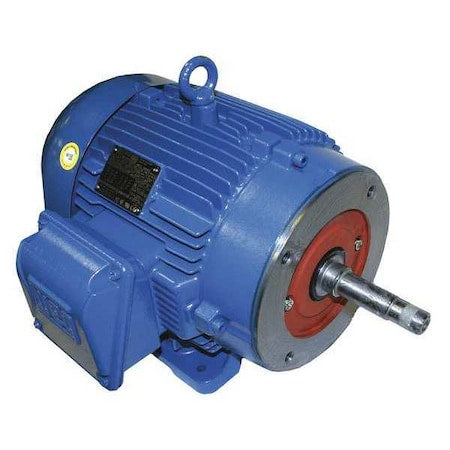

Weg 00736ET3E184JM-W22 Close-Coupled Pump Motor 7-1/2 HP

Product Description

The WEG 00736ET3E184JM-W22 is a 7-1/2 HP close-coupled pump motor with a body diameter of 9.4 inches and a bolt circle diameter of 5 7/8 inches. It operates at 60 Hz and is designed for continuous duty. The motor is suitable for pump applications and features a cast iron frame for durability. It is inverter rated and includes a base for mounting.

• Rated for continuous duty and pump applications.
• Features a durable cast iron frame and base.
• Inverter rated with a 1000:1 rating.

Product Highlights

This WEG pump motor is designed for high performance and energy efficiency, featuring a robust construction and optimized cooling system for extended life.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00736ET3E184JM-W22
• Country of Origin: Multiple

Technical Specifications

• HP: 7 1/2
• Hz: 60
• Duty: Continuous
• Item: Close-Coupled Pump Motor
• Frame: 182/4JM
• Phase: 3
• Voltage: 208-230/460V AC
• Includes: Base
• Body Dia.: 9.4 in
• HP @ 50Hz: 5 1/2, 7 1/2
• RPM Range: 3,001-3,600
• Standards: CSA (LR38324), CSA (LR50962), UL (E104590)
• Duty Cycle: Continuous
• Ins. Class: F
• RPM @ 50Hz: 2,910
• Shaft Dia.: 7/8 in
• NEMA Design: A
• Motor Design: 3-Phase
• Shaft Length: 4 1/4 in
• Nameplate RPM: 3,485
• No. of Speeds: 1
• Usable @ 208V: Yes
• Frame Material: Cast Iron
• Full Load Amps: 19.4-17.5/8.76 A
• Inverter Rated: Yes
• Motor Bearings: Ball
• Overall Length: 17 3/8 in
• Shaft Material: Carbon Steel
• Voltage @ 50Hz: 380/400/415
• Inverter Rating: 1000:1
• Bolt Circle Dia.: 5 7/8 in
• Length Less Shaft: 13 1/8 in
• Motor Application: Pump
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: JM Threaded
• Nominal Efficiency: 89.5 %
• Motor Mounting Type: Face/Base
• Conduit Box Location: Exterior
• Conduit Box Position: F1
• Motor Frame Material: Cast Iron
• Motor Service Factor: 1.25
• Motor Shaft Rotation: CW/CCW
• Regreasable Bearings: Permanently Lubricated Bearings
• Full Load Amps @ 50Hz: 19.4-17.5/8.7
• Motor Sub Application: Close-Coupled Pump
• Service Factor @ 50Hz: 1
• Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
• Motor Efficiency Group: NEMA Premium Efficient
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Mounting Position: Horizontal
• Green Certification or Other Recognition: NEMA Premium(R) Rated
• Mounting: Footed, C Face
• Motor Type: TEFC
• RPM: 3400 - 3600
• Series: Pump Motor
• All - Specific Ratings: IP55
• Enclosure: TEFC
• Output HP: 7.5//5.5
• Output KW: 5.5//4.1
• Output RPM: 3485//2900
• Frame Size NEMA: 182/4JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• MODEL: 00736ET3E184JM-W22
• BRAND: WEG
• Locked rotor current (II/In): 8.2
• Locked Rotor Torque: 270 %
• Break Down Torque: 330 %
• Efficiency (%) 50: 88.5
• Efficiency (%) 75: 89.5
• Efficiency (%) 100: 89.5
• Power factor (%) 50: 0.75
• Power factor (%) 75: 0.84
• Power factor (%) 100: 0.88
• Service Factor: 1.25
• Inertia: 0.22425 sq.ft.lb
• L.R. Time: 17 s
