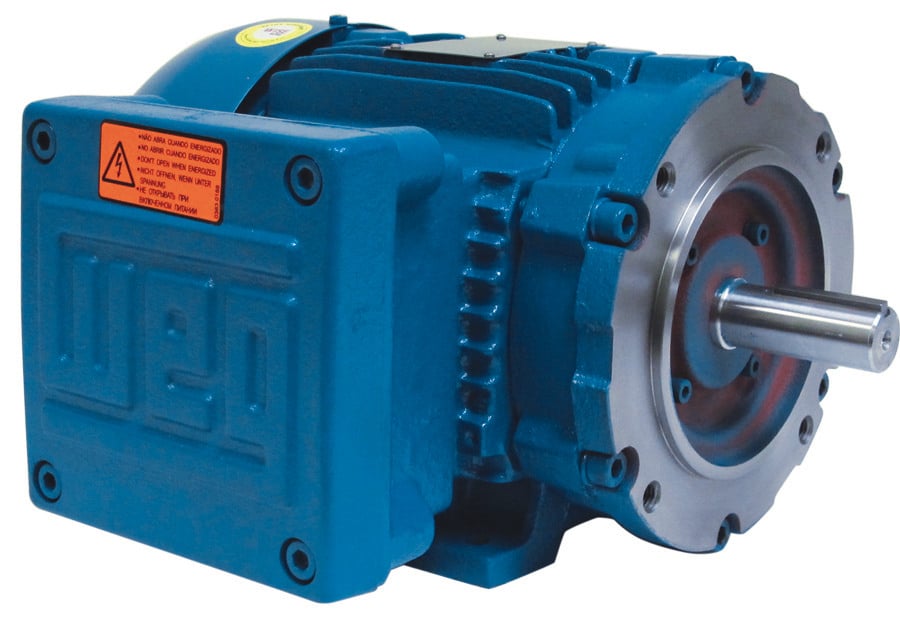

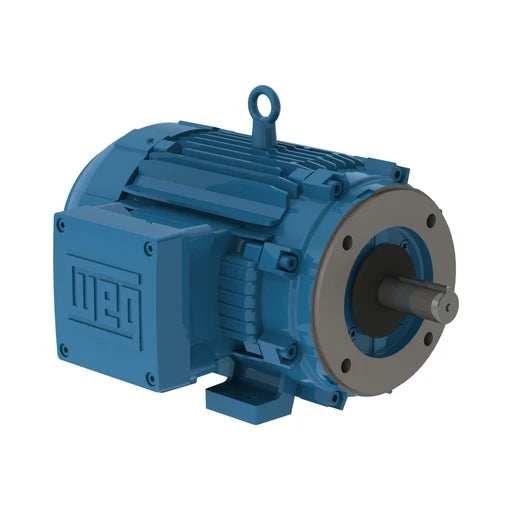

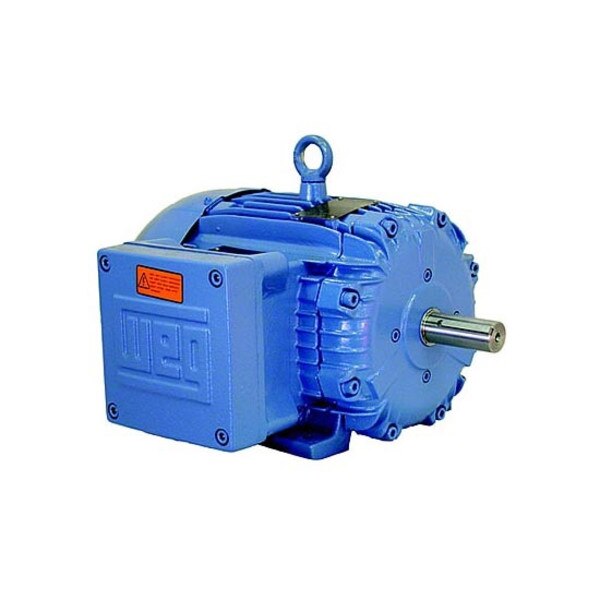

Weg 00718XT3H213TC W21 Explosion-proof Motor 7.5 HP 4P (213/5TC)

Product Description

The WEG W21 Explosion-proof Motor, MPN 00718XT3H213TC, is designed to operate in environments with explosive atmospheres. This motor has robust construction and a flame retention system. It meets the requirements of explosive atmospheres like Division I/Zone 1 and is certified for VFD service.

• NEMA MG-1 standard.
• Operates at 575 V and 60 Hz.
• Features an IC411 - TEFC Enclosure.

Product Highlights

Designed for hazardous locations, the WEG explosion-proof motor ensures reliable performance in demanding industrial environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00718XT3H213TC
• Country of Origin: Brazil

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60 Hz
• Voltage: 575 V
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 7.5 HP
• Mounting: F-1
• Flange: C
• Terminal box: Left position
• Enclosure: IC411 - TEFC
• HP: 7.5
• RPM: 1765
• Frame: 213/5T
• Frame Remarks: Footed
• Phase: 3
• Manufacturer: WEG
• Classification: Three Phase
• Item Condition: Factory New
• Model: 14284389
• Torque: 22.0 lb.ft
• Full Load Amps: 7.53 A
• Efficiency (100%): 91.7
• Power factor (100%): 0.80
• Insulation Class: F
• Noise Level: 58 dB(A)
• No load current: 3.20 A
• Locked rotor current (II/In): 6.7
• Service Factor: 1.15
• FL Eff (%): 91.7
• C Dimension (in): 17.952
• Explosion Proof: Yes
• Motor Enclosure Type: XP - Explosion Proof
• Motor Frame Size: 213/5TC
• Motor Type: Premium Efficient
• Speed (RPM): 1800
• Rated speed: 1765 rpm
• Slip: 1.94 %
• Rated Current: 7.53 A
• LR Amperes: 50.4 A
• LRC: 6.7x(Code H)
• Rated Torque: 22.3 ft.lb
• Locked Rotor Torque: 240 %
• Breakdown Torque: 280 %
• Moment of Inertia: 1.38 sq.ft.lb
• Design: B
• Locked Rotor Time: 21s (cold) 12s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Starting Method: Direct
• Enclosure Material: Iron
• Front Bearing Shielding: 2RS
• Front Bearing Size: 6308
• Front Bearing Type: Ball
• Front Sealing Type: Oil Seal
• Rear Bearing Shielding: 2RS
• Rear Bearing Size: 6207
• Rear Bearing Type: Ball
• Rear Sealing Type: Lip Seal
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 20:1
