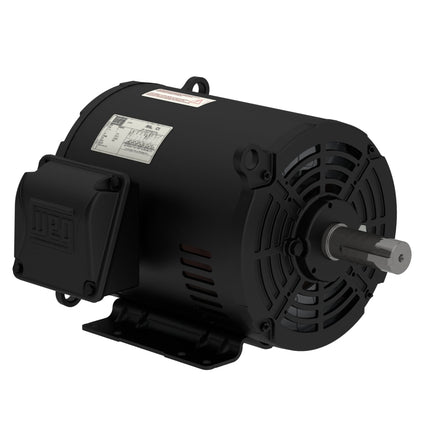

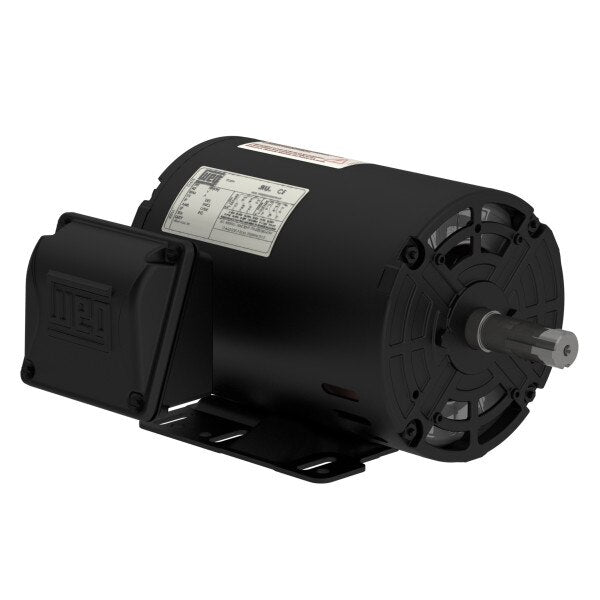

Weg 00718OT3P213T-S 7.5 HP 1800 RPM 213T ODP Three-Phase Motor

Product Description

The WEG 00718OT3P213T-S is a rolled steel open drip proof (ODP) motor designed for environments where dirt and moisture are minimal. This general purpose, three-phase motor delivers 7.5 HP at 1800 RPM. It is VFD suitable and features internal mounting for optional AEGIS shaft grounding rings. Popular applications include jet pumps and small compressors.

• Three-Phase motor
• VFD suitable
• Internal mounting for optional AEGIS shaft grounding rings

Product Highlights

The WEG rolled steel ODP motors provide a low-cost, light-weight solution for general purpose applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00718OT3P213T-S
• Country of Origin: Brazil

Technical Specifications

• Model: 00718OT3P213T-S
• Phase: Three-Phase
• Power: 7.5 HP
• Base RPM: 1800
• Frame: 213T
• Enclosure: ODP
• Enclosure Rating: IP21
• Voltage: 200V
• Construction: Rolled Steel
• Motor Phase: 3 ph
• Motor Horsepower: 7-1/2 hp
• Synchronous Rpm: 1800 rpm
• Frame Size: 213/5T
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Mounting Type: Foot
• Full Load Current: 21.00 A
• Full Load Efficiency: 91.00 %
• Volts @ Frequency: 200 V @ 60 Hz
• Description Keyword: 7-1/2 hp
• Overall Length C Dimension: 16.58 in
• Service Factor: 1.15
• Insulation Class: F
• IP Rating: 23
• Standards Met: UL, CSA, CE
• Harmonization Code: 8501.52.4000
• UPC_NO: 7909158531370
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
• Output: 7.5 HP
• Poles: 04
• Frequency: 60 Hz
• Rated speed: 1770 rpm
• Slip: 1.67 %
• Rated Current: 21.3 A
• LR Amperes: 153 A
• LRC: 7.2x(Code H)
• No Load Current: 10.1 A
• Rated Torque: 22.3 ft.lb
• Locked Rotor Torque: 240 %
• Breakdown Torque: 320 %
• Moment of Inertia: 1.03 sq.ft.lb
• Design: B
• Locked Rotor Time: 23s (cold) 13s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40
