Weg 00718ot3e213jp-s pump motor 7.5 hp 213/5jp

Product Description

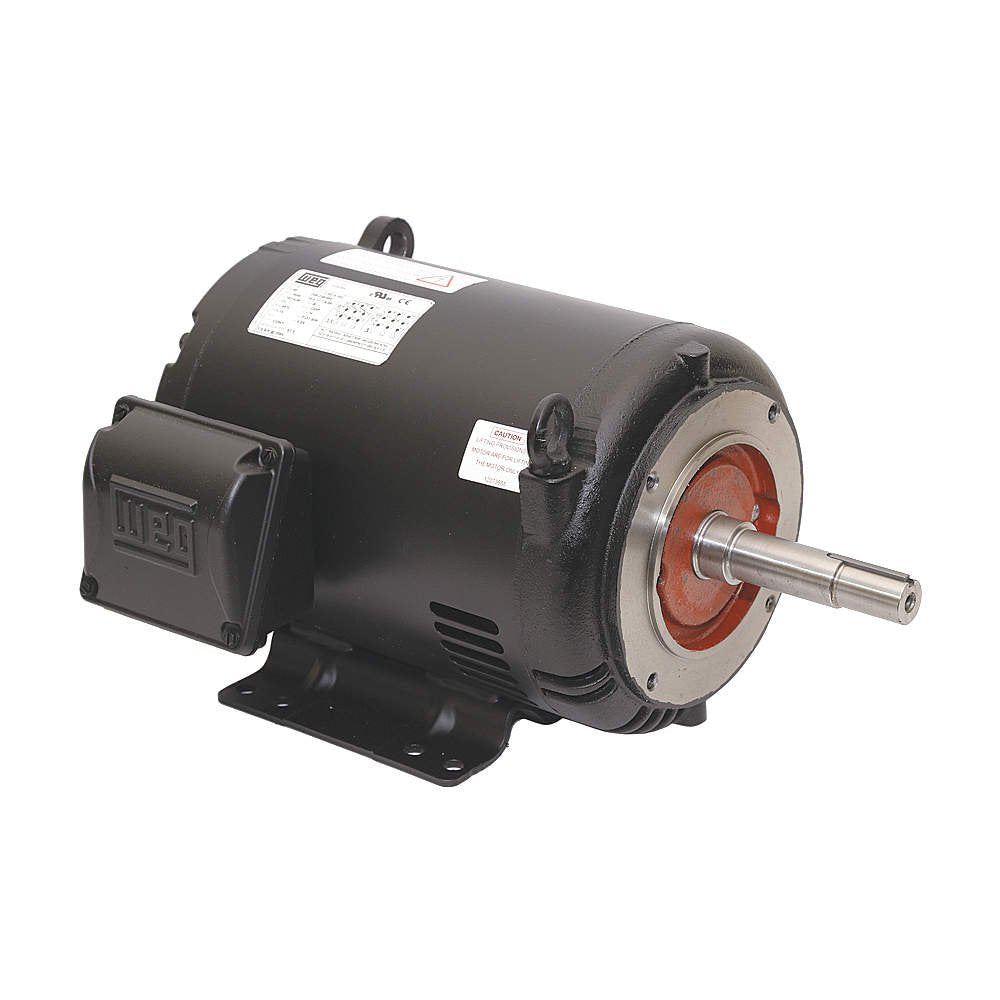

The WEG 00718OT3E213JP-S is a 7.5 HP close-coupled pump motor designed for demanding applications in environments where dirt and humidity are minimal. This three-phase motor provides maximum ventilation and heat dissipation. It operates on 208-230/460V at 60Hz and meets NEMA premium efficiency standards.

• NEMA Premium efficiency rating
• Durable rolled steel frame
• Oversized diagonally split aluminum terminal box

Product Highlights

Designed for direct mounting, this motor features a rolled steel frame and an open drip-proof enclosure.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00718OT3E213JP-S
• Country of Origin: Brazil

Technical Specifications

• Application: Closed Coupled
• Output HP: 7.5 HP
• Output KW: 5.5
• Output RPM: 1770
• Frame Size NEMA: 213/5JP
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP21
• Voltage: 230/460//190-220/380-415
• Full Load Amp (FLA): 9.3
• Hz: 60
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Frame Size: 213JP, 215JP
• Motor Type: Premium Efficient
• Phase: 3
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Quick Specs: 7.5HP 1800 3 60 230/460
• Service Factor: 1.15
• Speed (RPM): 1800
• Model: 00718OT3E213JP-S
• Base RPM: 1800
• Frame: 213JP
• Enclosure: ODP
• Enclosure Rating: IP23
• Construction: Rolled Steel
• Motor Category: Close Coupled Pump Motor
• Motor Phase: 3 ph
• Motor Horsepower: 7-1/2 hp
• Synchronous Rpm: 1800 rpm
• Motor Supply Voltage: 190/380//208-230/460 V
• Frame Size: 213/5JP
• Enclosure Type: ODP (Open Drip-Proof)
• Frequency Rating: 50/60 Hz
• Duty Condition Type: Continuous Duty
• Full Load Efficiency: 91.00 %
• Volts @ Frequency: 190 V @ 50 Hz; 380 V @ 50 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Standards Met: UL, CSA, CE
• Overall Length C Dimension: 21.58 in
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 23
• Mounting Type: C-Face / Foot Mounted
• Product Type: Pump Motors
• Locked rotor current (II/In): 7.3
• Locked Rotor Torque: 240 %
• Break Down Torque: 320 %
• Efficiency (%) 50: 89.5
• Efficiency (%) 75: 90.2
• Efficiency (%) 100: 91.0
• Power factor (%) 50: 0.65
• Power factor (%) 75: 0.77
• Power factor (%) 100: 0.82
• Inertia: 1.0273 sq.ft.lb
• L.R. Time: 13 s
• Primary brand: WEG
• Order code / Manufacturer SKU: 00718OT3E213JP-S
• Manufacturer product status: Commercialized
• UPC code: 7909158551446
• Manufacturer description: CLOSE-COUPLED PUMP - ROLLED STEEL - JM & JP FRAMES - MOTOR 7.5HP 4P 213/5JP WCA2
• Location of origin: Mexico
