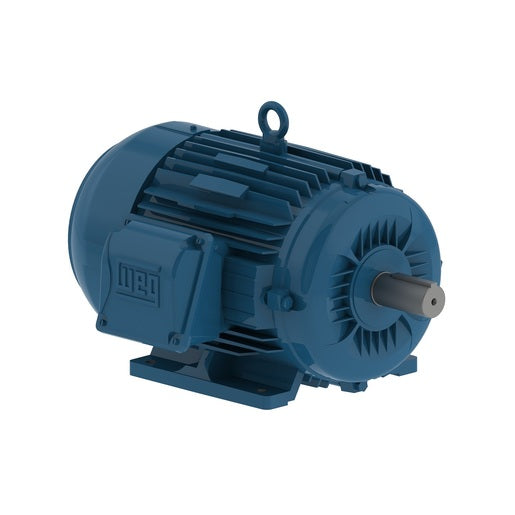

Weg 00718ET3E213T-W22S W22 NEMA Premium Efficiency 7.5 HP 4P 213/5T

Product Description

The WEG 00718ET3E213T-W22S is a W22 motor with cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, making it suitable for a variety of industrial applications. It has a NEMA Premium efficiency rating and is rated for IEEE45 and USCG 259 - Marine Duty. Suitable for VFD operation as per NEMA MG1.

• NEMA Premium efficiency rating
• Rated for IEEE45 and USCG 259 - Marine Duty
• Suitable for VFD operation as per NEMA MG1

Product Highlights

This motor is designed for maximum energy efficiency and performance, with a focus on low cost of ownership and extended lifetime.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00718ET3E213T-W22S
• Country of Origin: Brazil

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 230/460//380 V
• Number of poles: 4
• Degree of Protection: IP55
• Synchronous speed: 1800 rpm
• Output rating: 7.5 HP
• Mounting: F-1
• Flange: Without
• Terminal box : Left position
• Enclosure: IC411 - TEFC
• Application: General Purpose
• Output HP: 7.5
• Output KW: 5.5
• Output RPM: 1765
• Frame Size NEMA: 213/5T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• HP: 7.5
• Frame: 213/5T
• Volts: 208/230/460
• Phase: Three Phase
• Manufacturer: WEG
• Classification: Three Phase
• Output: 7.5 HP
• Poles: 04
• Torque: 22.0 lb.ft
• Full Load Amps: 19.9-18.4/9.18 A
• Efficiency (100%): 91.7
• Power factor (100%): 0.82
• Insulation: F
• Noise: 58 dB(A)
• No load current: 8.10/4.05 A
• Locked rotor current (II/In): 7.1
• Service Factor: 1.25
• FL Amps @ High: 9.00
• FL Eff (%): 91.7
• C Dimension (in): 19.517
• Rated speed: 1765 rpm
• Slip: 1.94 %
• Full Voltage - No Cables: 208-230/460//380 V
• Rated Current: 18.4/9.18 A
• LR Amperes: 130/65.2 A
• LRC: 7.1x(Code H)
• No Load Current: 8.80/4.40 A
• Rated Torque: 22.3 ft.lb
• Locked Rotor Torque: 220 %
• Breakdown Torque: 310 %
• Insulation Class: F
• Moment of Inertia: 1.34 sq.ft.lb
• Design: B
• Locked Rotor Time: 36s (cold) 20s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 C
• Minimum Room Temperature: -20 C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Starting Method: Direct
• Enclosure Material: Iron
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6308
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6207
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 20:1
• Alternate Part Number: 11723875
• Horsepower: 7.5 hp
• Mounting Design: Foot Mount
• Motor Type: TEFC
• All - Specific Ratings: IP55
• RPM: 1800
• Series: Severe Duty
• All - Voltage: 220/240VAC
• Rated Voltage: 208-230/460 V
• Frame Material: Cast Iron
• Hz: 60 Hz
• Motor Application: General Purpose
• Frame Size: 213T
• Foot Mounted: Foot Mounted
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Efficiency Group: NEMA Premium
