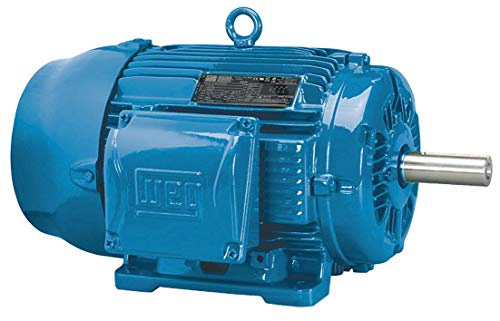

WEG 00718ET3E213T-W22 General Purpose Motor 7.5 HP 230/460V 213T Frame

Product Description

Introducing the WEG General Purpose Motor, fully designed for consistent and reliable performance across industrial applications. This robust motor, with model number 00718ET3E213T-W22, incorporates a 7.5 Horsepower motor, operating on a 3-phase design and providing a nameplate RPM of 1,800. Its totally enclosed fan-cooled (TEFC) motor enclosure design ensures longevity and protection from environmental elements.

• Efficient three-phase motor suitable for continuous operation
• Robust 213T frame with a rigid base mounting
• Operates on dual voltage of 230/460V AC for versatile use in various installations

Product Highlights

WEG's General Purpose Motor delivers robust performance with a high efficiency rating, ideal for a broad range of industrial machinery. Its versatility is supported by a wide voltage compatibility, making it suitable for global industrial standards.

Product Information

Standard Information

• Brand: WEG
• MPN: 00718ET3E213T-W22

Technical Specifications

• Power: 7.5 HP
• RPM: 1,800 RPM
• Voltage: 230/460V AC
• Frame: 213T
• Phase: 3-Phase
• Enclosure Type: Totally Enclosed Fan-Cooled
• Service Factor: 1.25
• Protection: Motor Thermal Protection None
• Mounting Type: Rigid Base
• Rotation: CW/CCW
