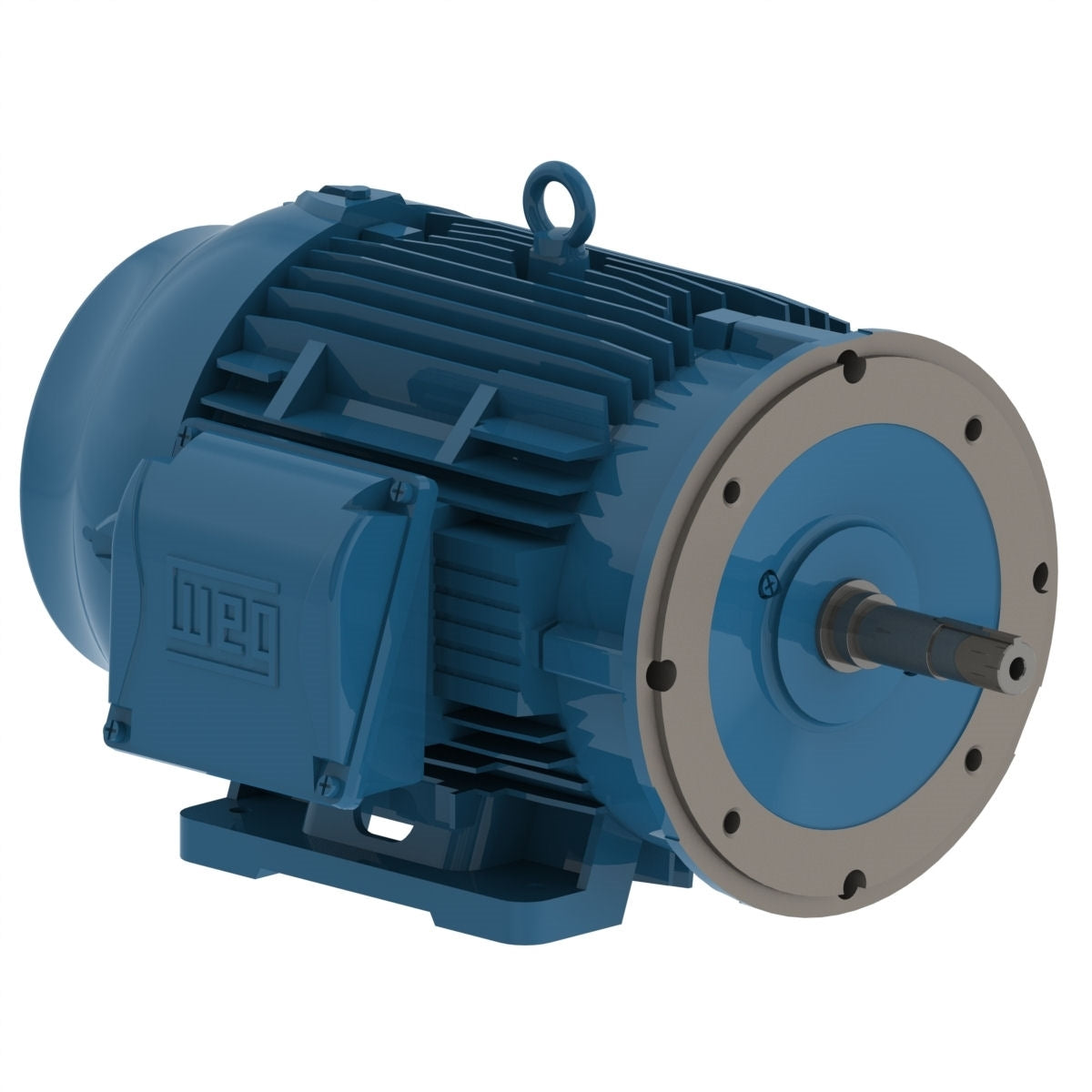

WEG 00718ET3E213JM-W22 MOTOR 7.5HP 4P 213/5JM WFF2

Product Description

WEG AC Motor, model 00718ET3E213JM-W22, is designed for continuous-duty applications. It operates with a power of 7.5 horsepower, suitable for various Jet Pump uses. This motor works with voltages of two hundred eight, two hundred thirty, or four hundred sixty VAC and offers flexibility in operation.

• Motor speed rated at one thousand seven hundred sixty-five RPM
• Includes ball bearings for smooth performance
• Features a footed mounting style for easy installation

Product Highlights

This motor is suitable for a range of applications, providing efficient performance in demanding environments.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• UPC: 7909158376117

Technical Specifications

• Amperage Rating: 19.9 to 18.4/9.18 A
• Application Type: Jet Pump (JM/JP) Motors
• Bearing Type: Ball
• Dimensions: 20.392 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 213/5JM
• Frequency Rating: 60 Hz
• Horsepower: 7.5 hp
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 7/8 in Dia x 4-1/8 in L
• Speed: 1765 rpm
• Temperature Rating: -20 to 40 deg C
