Weg 00718ET3E213JM-S Weg AC Motor 7.5 hp REPLACES 00718EP3E213JM-S

Product Description

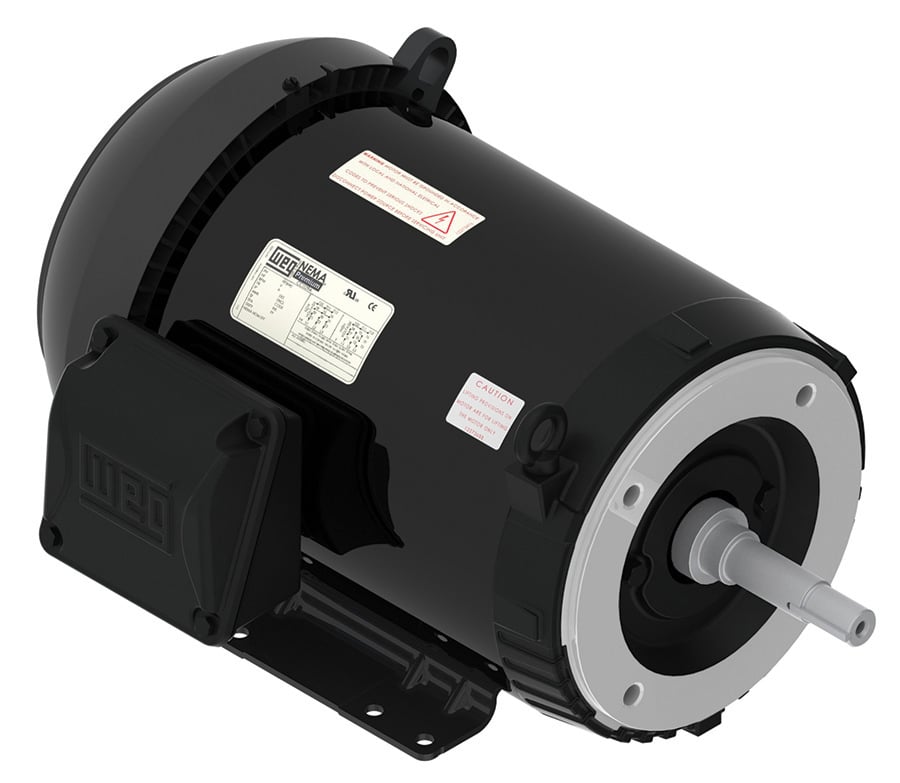

The WEG 00718ET3E213JM-S AC motor is designed for high performance and maximum energy efficiency. This 7.5 hp motor operates at 208/230/460 VAC, 60 Hz, and 1770 rpm. It features a totally enclosed fan-cooled enclosure, a 213/5JM frame, and is suitable for jet pump applications. The motor's design ensures cooler operation, reduced vibration, and noise.

• Features a stainless steel nameplate laser etched with high contrast background
• Equipped with regreasable bearings
• Includes a gasketed conduit box

Product Highlights

This WEG AC motor is ideal for applications requiring energy efficiency and durability, such as jet pumps and closed-coupled systems.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00718ET3E213JM-S

Technical Specifications

• Frame: 213/5JM
• Phase: 3
• Speed: 1770 rpm
• Material: Rolled Steel
• Rotation: CW/CCW
• Horsepower: 7.5 hp
• Bearing Type: Ball
• Mounting Type: Footed
• Torque Rating: 22.0 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.15
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 20.1 to 18.1/9.07 A
• Application Type: Jet Pump (JM/JP) Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Temperature Rating: -20 to 40 deg C
• Variable Torque Speed Range: 1000:1
• Application: Closed Coupled
• Output HP: 7.5
• Output KW: 5.5
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415
• Replaces: 00718EP3E213JM-S
• Poles: 4
• Efficiency (100%): 91.7
• Power factor (100%): 0.82
• Noise: 60 dB(A)
• No load current: 8.81/4.41 A
• Locked rotor current (II/In): 7.3
• FL Amps @ High: 9.07
• FL Eff (%): 91.7
• C Dimension (in): 20.039
• Full Load Amp (FLA): 9.1
• Hz: 60
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 213-215JM
• Motor Type: Premium Efficient
• Speed (RPM): 1800
