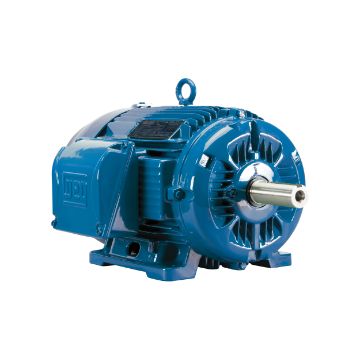

WEG 00712ET3E254T-W22 Continuous-Duty AC Motor 7.5 hp 254/6T Frame

Product Description

The WEG 00712ET3E254T-W22 is a continuous-duty AC motor designed for general-purpose applications. This motor features a cast iron frame, making it ideal for various industrial tasks. It operates at seven point five horsepower and supports multiple voltage ratings of 208, 230, and 460 VAC.

• Suitable for use in diverse industrial environments
• Totally enclosed fan cooled for greater efficiency
• Provides precise torque and speed control

Product Highlights

This motor stands out with its footed mounting design and high torque rating, making it reliable for continuous operation.

Product Information

Standard Information

• Brand: WEG
• Part Number: 00712ET3E254T-W22

Technical Specifications

• Frame: 254/6T
• Phase: 3
• Speed: 1175 rpm
• Material: Cast Iron
• Rotation: CW/CCW
• Dimensions: 24.945 in L
• Horsepower: 7.5 hp
• Shaft Size: 1-5/8 in Dia x 4 in L
• Bearing Type: Ball
• Mounting Type: Footed
• Torque Rating: 33.1 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.25
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 21 to 19/9.48 A
• Application Type: General Purpose AC Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Number of Speeds: 1
• Temperature Rating: -20 to 40 deg C
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
