Weg 00536OS1CCDW184Y-S 5HP 3465RPM W182/4Y

Product Description

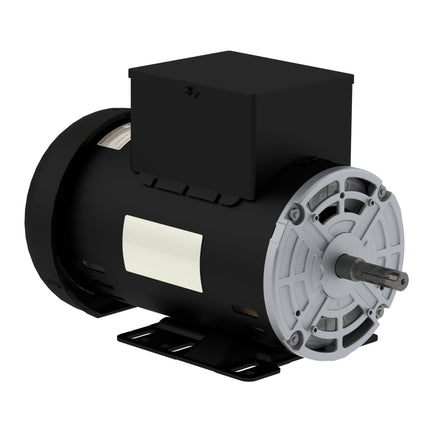

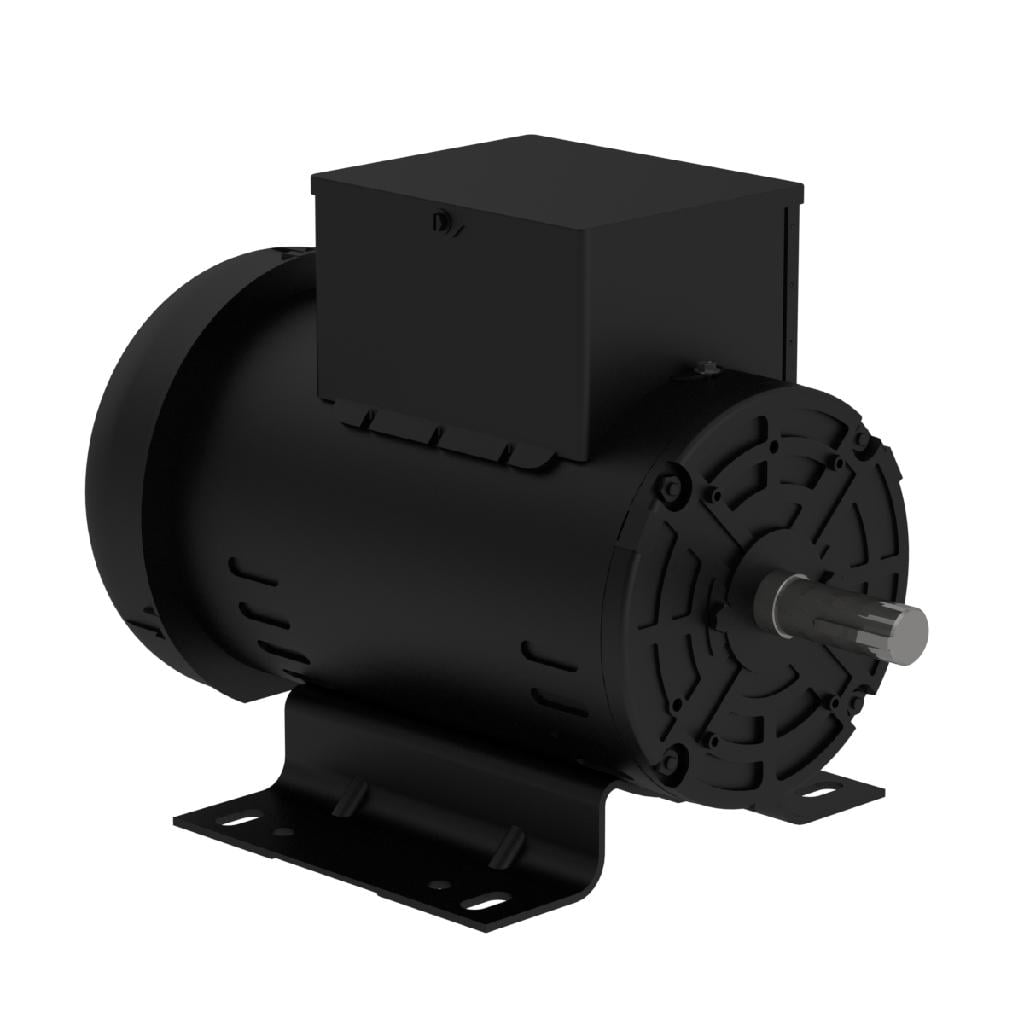

The WEG 00536OS1CCDW184Y-S 5HP single-phase compressor duty motor is designed for applications requiring robustness and high performance. These rolled steel motors offer good thermal performance and easy installation. Well-suited for heavy starting loads, this motor is rated for 208-230V at 60Hz and features a W182/4Y mounting frame and an open drip-proof enclosure.

• Ball bearings
• Class F insulation
• V-ring seals
• Compressor Duty

Product Highlights

This WEG motor is ideal for air compressors, fans, blowers, pumps, chillers, and other belt-driven systems.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00536OS1CCDW184Y-S
• Country of Origin: Brazil

Technical Specifications

• Application: General Purpose
• Output HP: 5
• Output KW: 3.7
• Output RPM: 3465
• Frame NEMA: W182/4Y
• Mount NEMA: Base Mount
• Enclosure NEMA: IC01 - ODP
• Enclosure IEC: IP21
• Voltage: 208-230
• Frequency (Hz): 60
• Primary brand: WEG
• Order code / Manufacturer SKU: 00536OS1CCDW184Y-S
• Manufacturer product status: Commercialized
• UPC code: 7909323758489
• Manufacturer description: COMPRESSOR DUTY NEMA 56 & NEMA T FRAMES - MOTOR 5HP 2P W182/4Y WCA2 RO S SI PH
• Location of origin: Brazil
• Phase: 1 Phase
• Speed: 3465 RPM
• Shaft Rotation: Bidirectional (CW & CCW)
• Rated Voltage: 208-230V
• Duty Rating: Continuous
• Insulation Class: F
• Enclosure: Open-Drip Proof (ODP)
• Shaft Diameter: 7/8"
• Shaft Length: 2-1/4"
• Amps: 22.40-20.70
• Nominal Efficiency: 80%
• Enclosure Rating: IP20
• Construction: Rolled Steel
• Weight: 58.81 lb
• Frame: 184Y
• HP: 5
• Hz: 60
• RPM: 3400 - 3600
• Model: 14201573
• Frame Remarks: Compressor Duty
• Classification: Compressor Duty
• Volts: 208/230
