Weg 00536ET3E184TC-S 5 HP 3600 RPM Footed REPLACES 00536ET3ERS184TC

Product Description

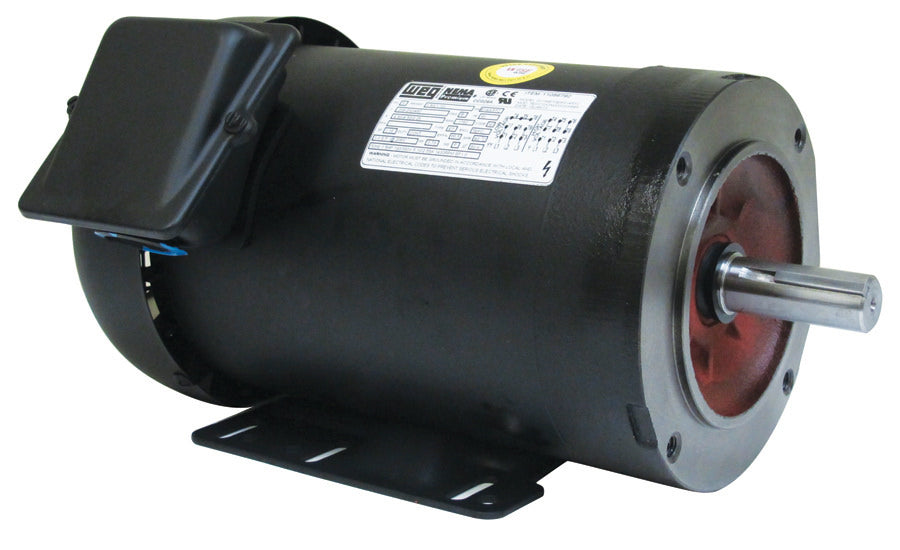

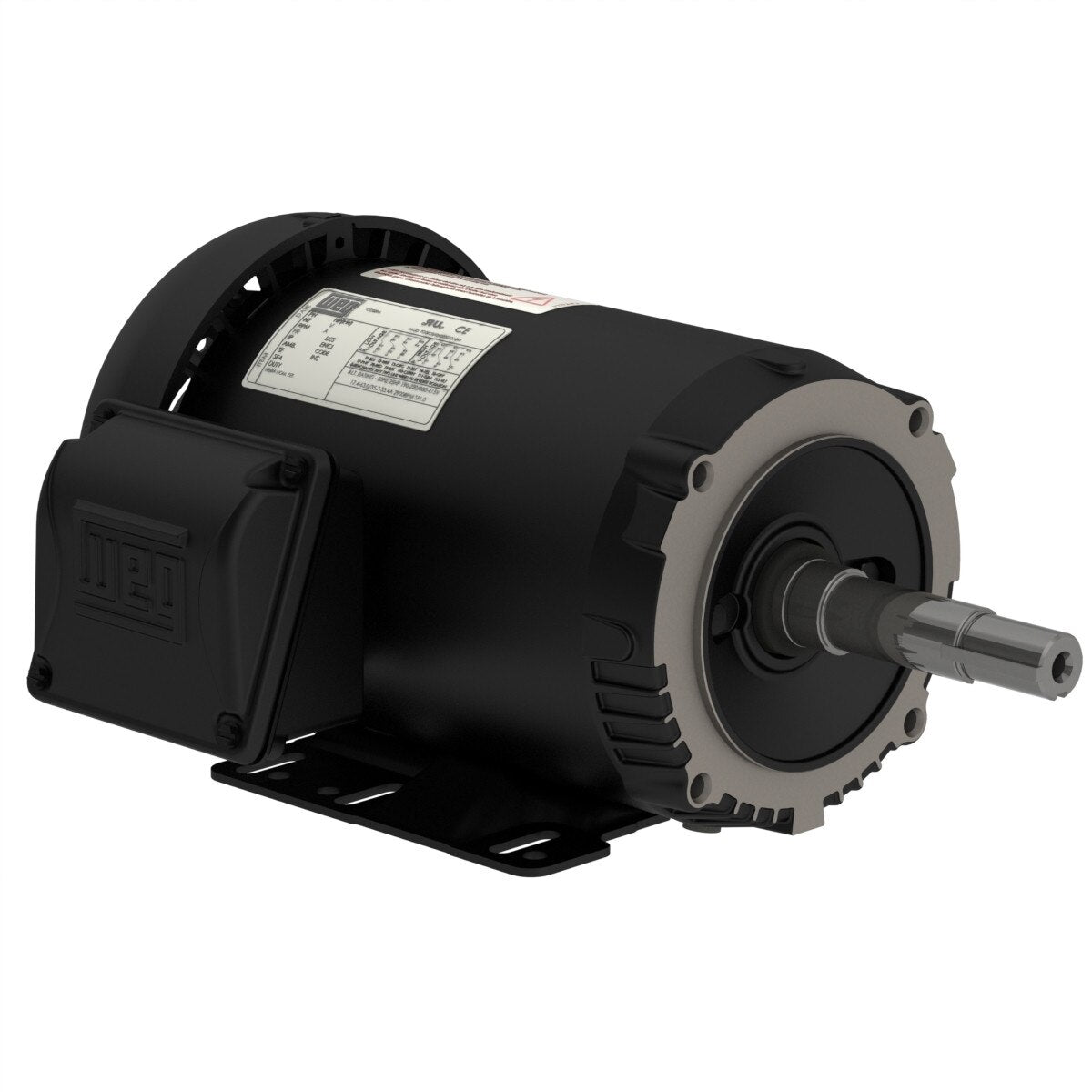

The WEG 00536ET3E184TC-S is a 5 HP rolled steel motor with a new electrical and mechanical design for cooler operation and easier maintenance. This premium efficiency motor meets NEMA Premium requirements and is designed for environments with dirt, dust, and moisture. The TEFC motor is suitable for indoor and outdoor applications.

• Improved thermal performance with new ventilation system.
• Robust feet design suitable for tougher applications (frames 182/4T and up).
• Suitable for VFD operation as per NEMA MG1 part 31.4.4.2.

Product Highlights

Premium efficiency motor designed for durability and optimal performance in demanding environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00536ET3E184TC-S
• Country of Origin: Brazil

Technical Specifications

• HP: 5
• RPM: 3600
• Enclosure: TEFC
• Frame: 182/4T
• Frame Remarks: Footed
• Volts: 208/230/460
• Phase: Three Phase
• Manufacturer: WEG
• Classification: Three Phase
• Model: 00536ET3E184TC-S
• Replaces: 00536ET3ERS184TC
• Poles: 2
• Frequency: 60 Hz
• Torque: 7.40 lb.ft
• Full Load Amps: 13.1-11.8/5.90 A
• Efficiency (100%): 88.5
• Power factor (100%): 0.89
• Insulation: F
• Noise Level: 68 dB(A)
• No Load Current: 4.40/2.20 A
• Locked rotor current (II/In): 7.8
• Service Factor: 1.15
• FL Amps @ High: 5.90
• FL Eff (%): 88.5
• C Dimension (in): 17.894
• Slip: 2.78 %
• Rated Current: 11.8/5.90 A
• LR Amperes: 92.0/46.0 A
• LRC: 7.8x(Code J)
• Rated Torque: 7.50 ft.lb
• Locked Rotor Torque: 220 %
• Breakdown Torque: 300 %
• Insulation Class: F
• Moment of Inertia: 0.2079 sq.ft.lb
• Design: B
• Locked Rotor Time: 30s (cold) 17s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Degree of Protection: IP55
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Mounting: F-1
• Rotation Direction: Both
• Starting Method: -
• Enclosure Material: Steel Plate
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6206
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6205
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 10:1
• Order code / Manufacturer SKU: 00536ET3E184TC-S
• Manufacturer description: ROLLED STEEL - GENERAL PURPOSE - PREMIUM EFFICIENCY - MOTOR 5HP 2P 182/4TC WCF2 ROLLED STEEL I
• Hz: 60
• Voltage: 230/460
• Output HP: 5 HP
• Break Down Torque: 300 %
